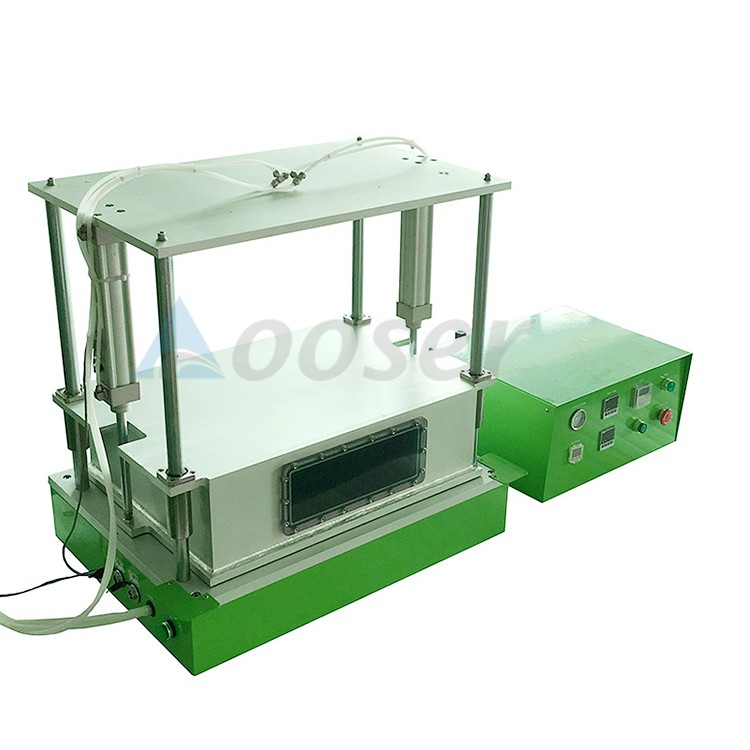

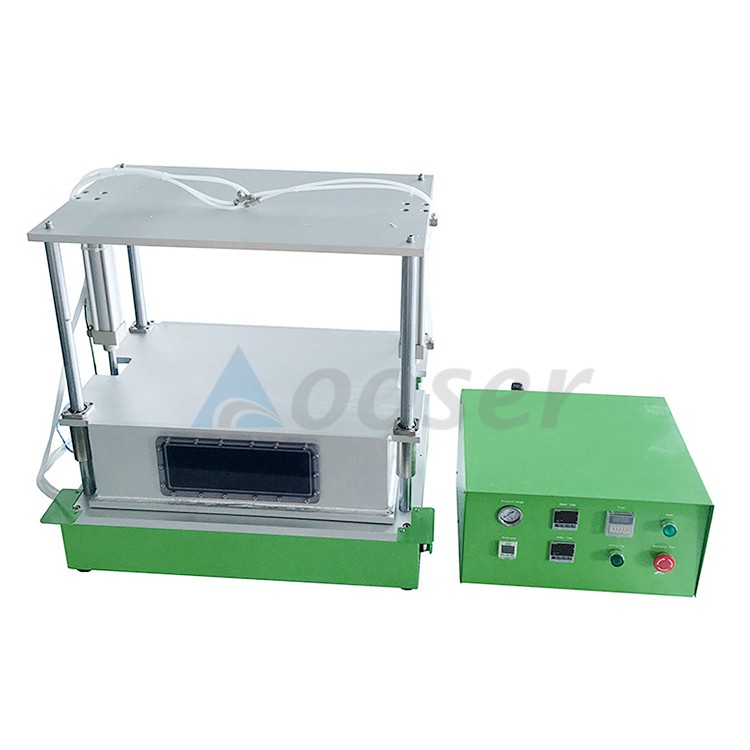

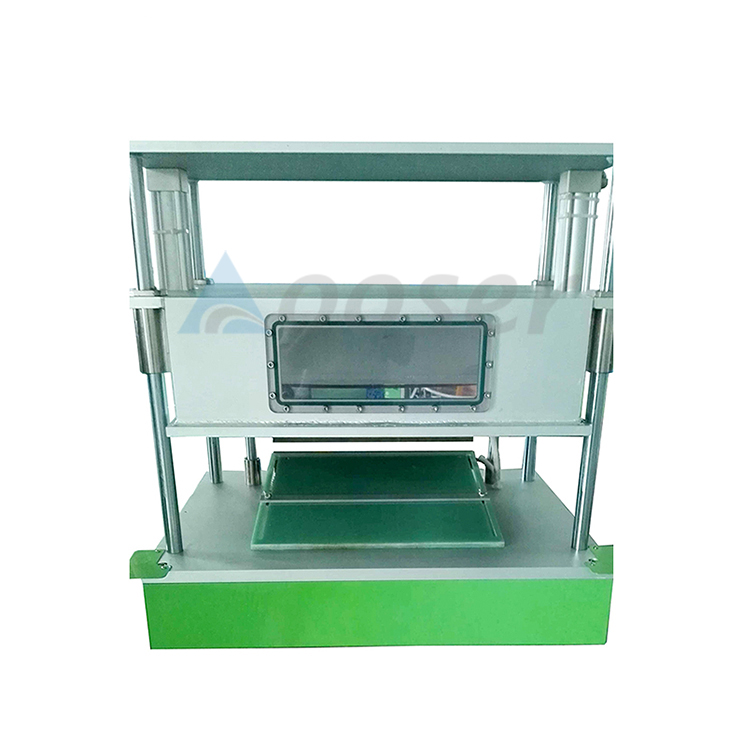

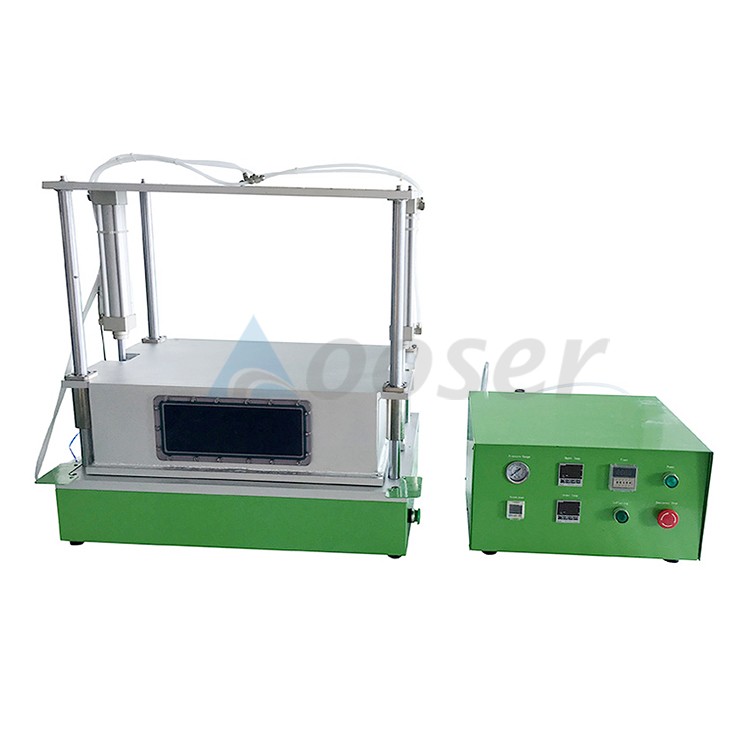

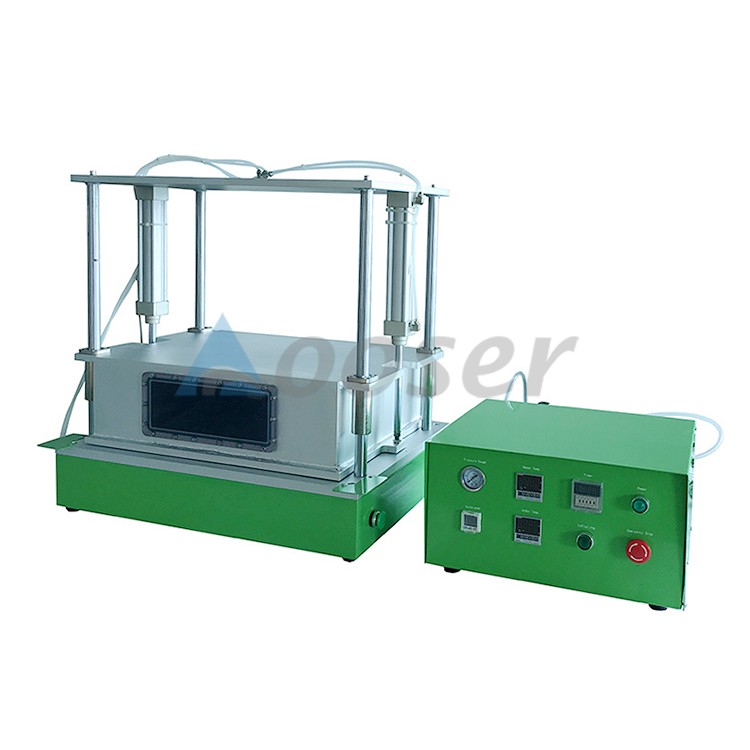

AS-YF400 Compact Vacuum Sealer is mainly used for sealing aluminum-laminated case in glove box after injection electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). It through the precise control of the main vacuum pumping gas tank and pneumatic heat sealing component , to seal the aluminum film pouch case of polymer battery automatically.
Vacuum Battery Heat Sealing Machine For Li ion Polymer Cell Final Sealing
Description:
AS-YF400 Compact Vacuum Sealer is mainly used for sealing aluminum-laminated case in glove box after injection electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). It through the precise control of the main vacuum pumping gas tank and pneumatic heat sealing component , to seal the aluminum film pouch case of polymer battery automatically.
Parameters:
|
Model |
Compact Vacuum Sealer |
|
Source voltage |
AC 220V/110V, 50/60HZ |
|
Power |
1000W |
|
Warranty |
One year limited warranty with lifetime support |
|
Advantages |
1 Sealing Head adopts copper material, good heat transfer effect, 2 With adjust plate, Can apply to different specifications battery, and the adjusting easily |
|
Vacuum degree |
-95Kpa - 0 |
|
Sealing head TEM |
RT-250℃, adjustable |
|
TEM accuracy |
±1.5℃ |
|
Sealing pressure |
0-7Kg/cm2, adjustable |
|
Sealing time |
0-99s, adjustable |
|
Sealing Blade |
Hard type (without rubber, only for Al case sealing, not suitable for sealing case with tab in between) |
|
Sealing width |
5mm, customized |
|
Sealing head length |
400mm |
|
Suitable battery size (Inner size) |
380*300*15mm |
|
Air source |
0.5-0.7MPa (72.5-102psi) |
|
Dimension(L*W*H) |
Sealing Unit : 710*530*720mm Control Unit: 450*400*230mm |
|
Weight |
Sealing Unit : 99kg Control Unit: 19kg |
