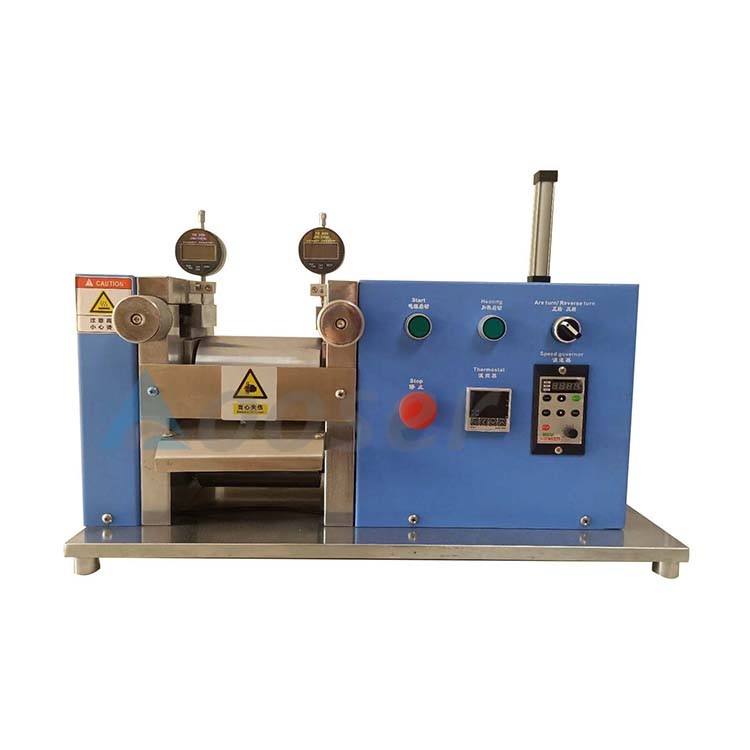

Lab Calender Machine Rolling Press Machine for Lithium Battery Electrode Pressing

1.AS-JS Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.
2. The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 130°C.

EMAIL

Lab Calender Machine Rolling Press Machine for Lithium Battery Electrode Pressing

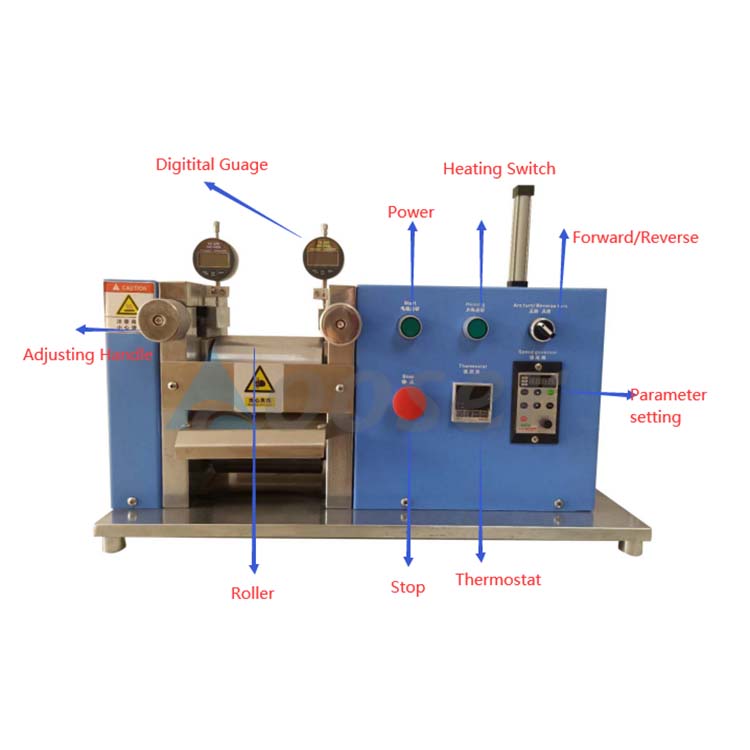

Features

1.AS-JS Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.

2. The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 130°C.


Specifications

Model

Hot Roller Press Machine  AS-JS

Source voltage

AC 110V-220V Customized, 50HZ

Power

800W

Warranty

Two Year limited warranty with lifetime support

Roller temperature

125°C Max. (< 1hr)

110°C Continuously

Recommended Heating Rate: 1.3°C/minute,

adjustable and digital display

Roller Size

100mm Dia. x 100mm W

100mm Dia. x 200mm W

100mm Dia. x 250mm W

100mm Dia. x 300mm W

100mm Dia. x 400mm W

(Roller Size can be customized according to customer’s requirement)

Roller surface hardness

HRC62

Rolling Speed

0~40mm /sec adjustable

Minimum Thickness

Depends on original electrode's material and thickness. Typically:

0.16mm thick electrode coated on copper, min. thickness after pressing: 0.1 mm

0.06mm thick electrode coated on copper, min. thickness after pressing: 0.04 mm

0.33mm thick silver/gold, min. thickness after pressing: 0.03 mm

Dial Gauge Accuracy

0.01mm

Roller finish degree

>0.8

Calendering Thickness

0~3 mm adjustable
