180mm Width Micrometer Adjustable Wet Film Applicator with Slurry Guiding Plate

Model: AS-KTQ-180S

Coating width: 180mm

Material: 304 stainless steel

Origin: China

EMAIL

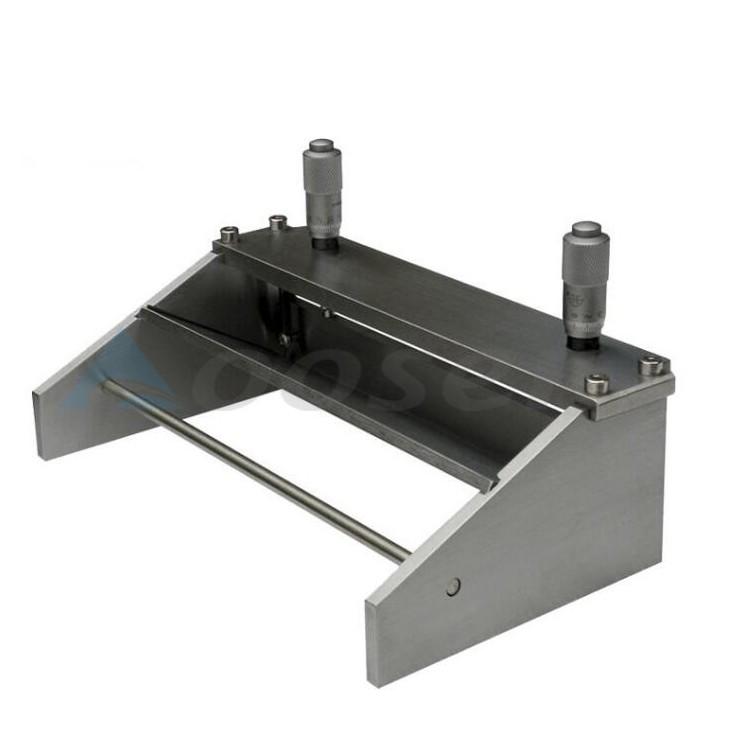

KTQ-180mm Adjustable Film Applicator


Description:

This unique wet film applicator features micrometer heads for knife blade adjustment.

The operator sets the blade clearance by adjusting the micrometers. This is excellent tool for material research laboratories to make high quality films,ceramic tape castings, battery electrodes,and various coatings at a lower cost. Stainless steel knife blade with precision ground edge.


Specification of the 180mm Micrometer Adjustable Film Applicator:

180 mm standard width.

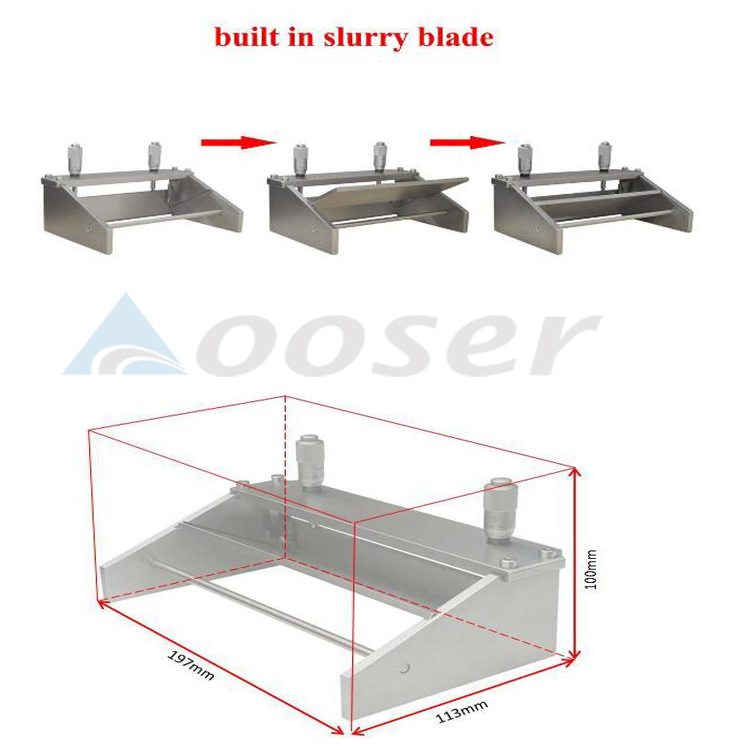

Built in slurry guiding plate to make film coating at easy.

Make wet film thickness between 0 - 5000 microns.

Micrometer head's controllable accuracy is 10 microns.

Slurry Capacity: 72 ml.


180 wet film applicator
