Model: AS-KTQ-250S
Slurry Capacity:100 ml
Material: 304 stainless steel
Origin: China

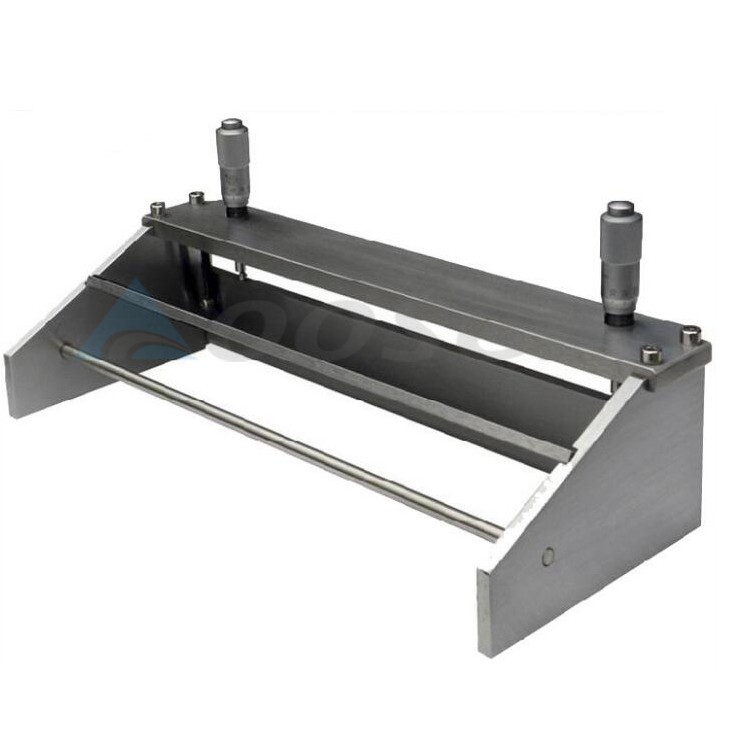

Lab 304 stainless steel 250mm Film Casting Doctor Blade with Slurry
Description:
1.This unique wet film applicator features micrometer heads for knife blade adjustment.
2.The operator sets the blade clearance by adjusting the micrometer. This is an excellent tool for material research laboratories to make quality film to make ceramic tape casting, battery electrodes, and various coatings at a lower cost. Stainless steel knife blade with precision ground edge.
Specification:
|
Model |
Film Applicator with Slurry Baffle AS-KTQ-250S |
|
width |
250 mm standard width |
|
wet film thickness |
Make wet film thickness between 0 - 5000 microns |
|
Micrometer head's controllable accuracy |
10 microns |
|
Slurry Capacity |
100 ml |
|
Remark |

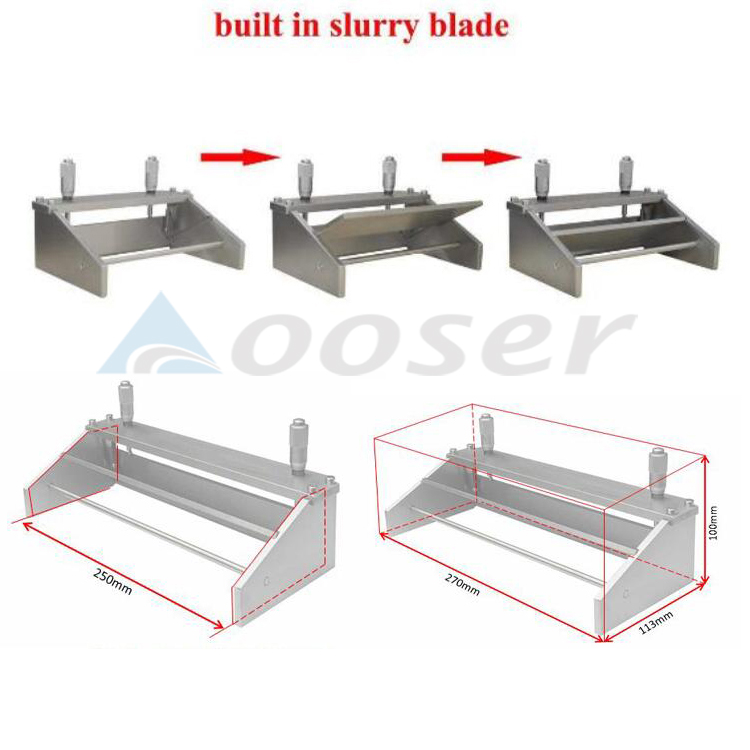

Built in slurry guiding plate to make film coating at easy |
|
Warranty |
One year limited warranty with lifetime support |
|
Origin |
China |
