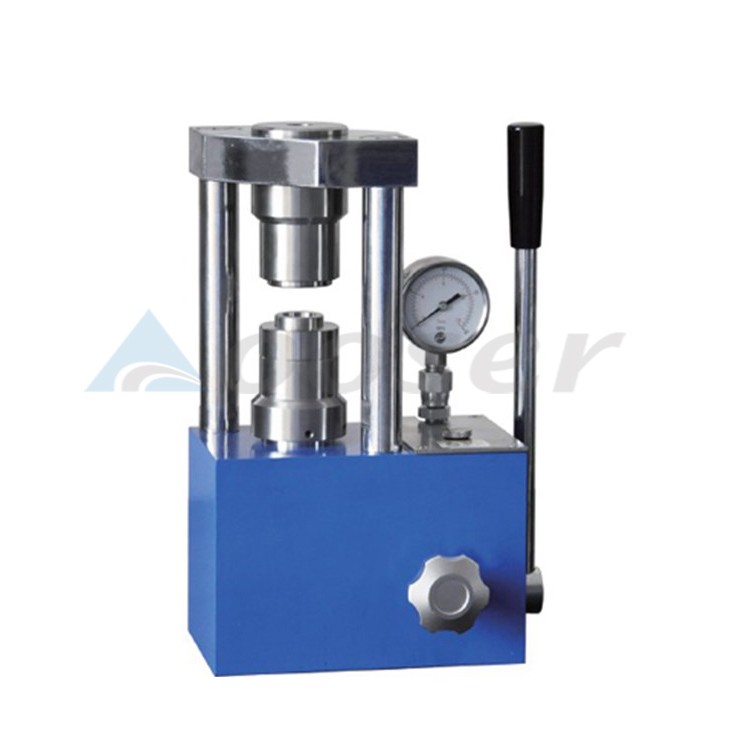

Laboratory Hydraulic Manual Coin Cell Crimping Machine For CR2016 CR2025 CR2032

Laboratory Hydraulic Manual coin cell Crimping Machine For CR2016 CR2025 CR2032

Main Features:

1.Small size, light weight,No oil linkage, easy to carry.

2.High speed steel imported from Japan

3.Digital display pressure gauge0.1MPa, Pressure control is more accurate.

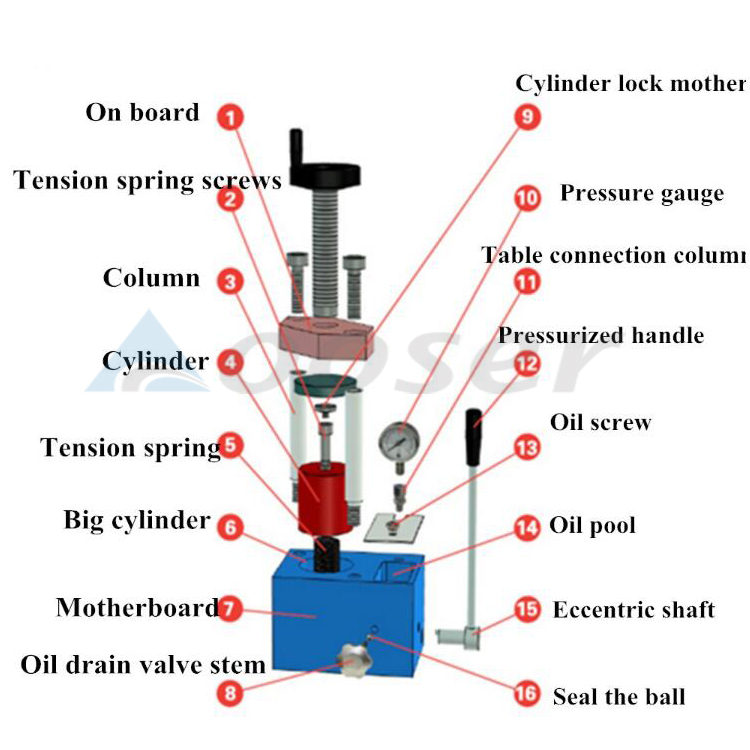

4.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

5.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

6.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

7.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

8.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

9.The Aluminum Alloy hand wheel, beautiful, practical, durable, not easy to damage

Parameters:

This Laboratory Hydraulic crimping machine also can be a pressing machine by replacing the mold, it has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.

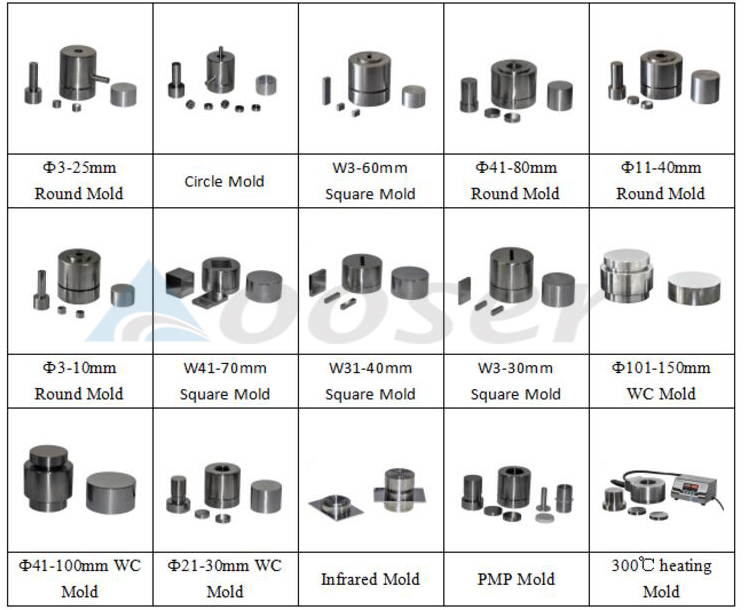

Other Molds for your choice:
