Automatic Digital Battery Electrolyte Filling Machine Injector For Lab Research

Product Name

Battery Electrolyte Filling Machine

Model

AS-BD-50ML

Precision

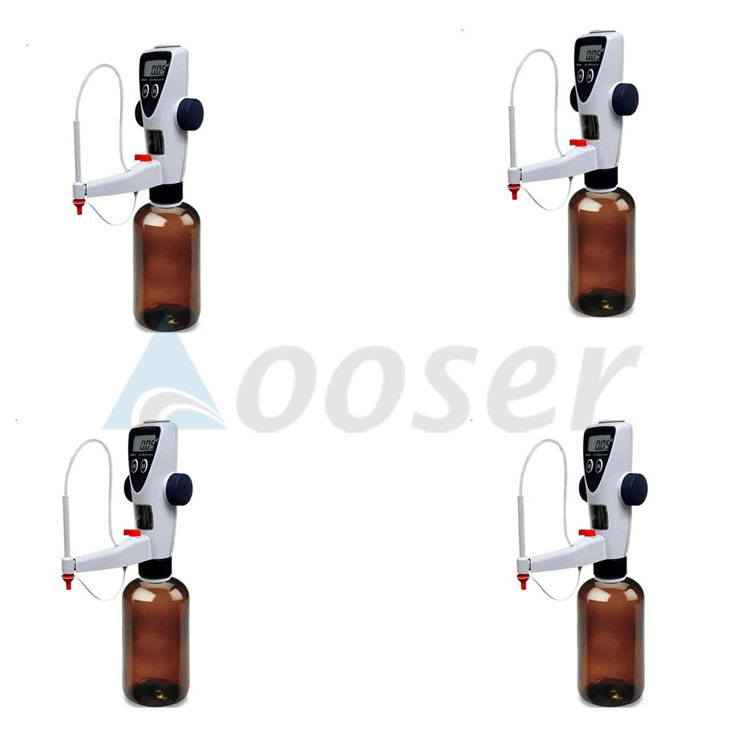

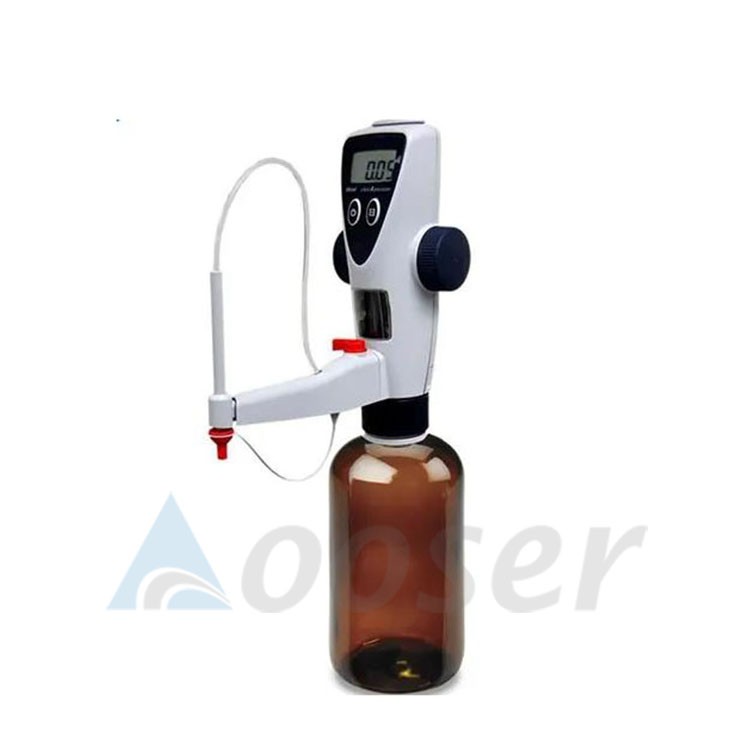

The Titrette® bottle-top burette has an innovative new measuring system that matches the Class A accuracy of glass burettes and,if needed, can offer the precision of 3 decimal places below 20mL. This is an important feature for users who need to work within the Class A error limits of glass burettes according to DIN EN ISO 385 or within volumetric tolerance per ASTM E287.

User Serviceable

It can be quickly and easily disassembled in a matter of minutes – for cleaning, to replace the piston/cylinder, or to replace the batteries. Maintenance is easy and convenient, without the need to send it out for repair.

Protection

To protect light-sensitive media, the installed clear cylinder inspection windows can be easily replaced with the supplied clip-on amber-colored windows.

Profile

All components move within the housing, reducing headroom requirements.

The compact design and lightweight ensure good stability.
The titrating tube can be adjusted horizontally and vertically.

Operation

The large handwheels provide smooth, precise control from rapid to dropwise titration.

Operating limits and exclusions

The temperature of instrument and reagents must be between 15º and 40º C (59º and 104ºF)
Vapor pressure up to 500mbar
Viscosity up to 500 mm^2/s
Altitude: Maximum 3000m above sea level
Relative humidity: 20% to 90%
