Continuous Battery Electrode Coating Machine for Lab and Factory

The continuous battery coating machine is specially used for coating the surface of foil materials, which can achieve a very uniform thin coating on the surface of the substrate, which is automatically dried by the drying system.

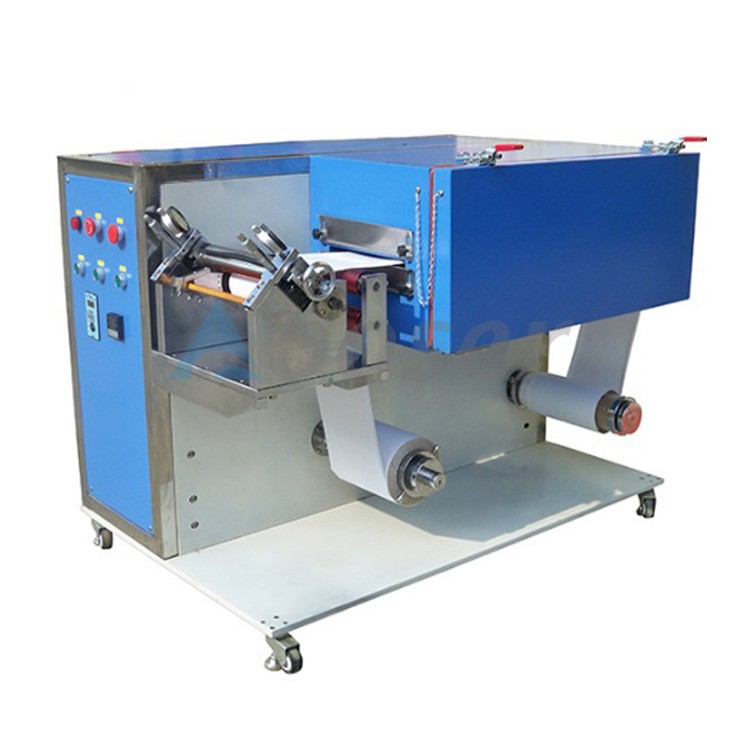

300mm Continuous Battery Electrode Coating Machine for Laband Factory

Description:

The continuous experimental coating machine is specially used for coating the surface of foil materials, which can achieve a very uniform thin coating on the surface of the substrate, which is automatically dried by the drying system. This equipment can realize continuous coating, suitable for battery production research and development experiments and sample production, etc., and has a certain versatility. At the same time, it is widely used in other industries such as film, paper and composite materials, and has high experimental production efficiency.

Features:

(1) Automatic tape transport, automatic winding;

(2) The automatic winding correction system makes the winding more neat and beautiful;

(3) Equipped with drying system, automatic coating drying temperature PID adjustable;

(4) Adjustable coating tension;

(5) High coating precision;

(6) The coating width can be customized according to customer needs.

Parameters:

Model	Battery Coating Machine AS-TBJ-300
Power supply	AC380V / 50Hz
Maximum power	About 9kW
Width of substrate	300mm
Coating width	30-280mm adjustable
Coating thickness	40-1000um
Coating method	Uninterrupted continuous coating
Applicable substrate	Copper foil (0.006～0.020mm) Aluminum foil (0.010～0.030mm)
Coating speed	100-600mm/m (adjustable)
Coating thickness accuracy	±3um
Coating length accuracy	±1mm
Diameter of coating roller	Ø100mm
Coating roller beat	≤2μm
Unwinding diameter	280mm
Unwinding tension control	5-50N (adjustable)
Rewinding diameter	280mm
Winding tension control	5-50N adjustable (AC motor active winding)
Scraper positioning accuracy	dial indicator display, accuracy±1um
Correction accuracy	±0.5mm
Drying temperature (Max)	150±3℃
Oven length	2000mm
Drying method	upper and lower air nozzles blowing (resistance wire heating)

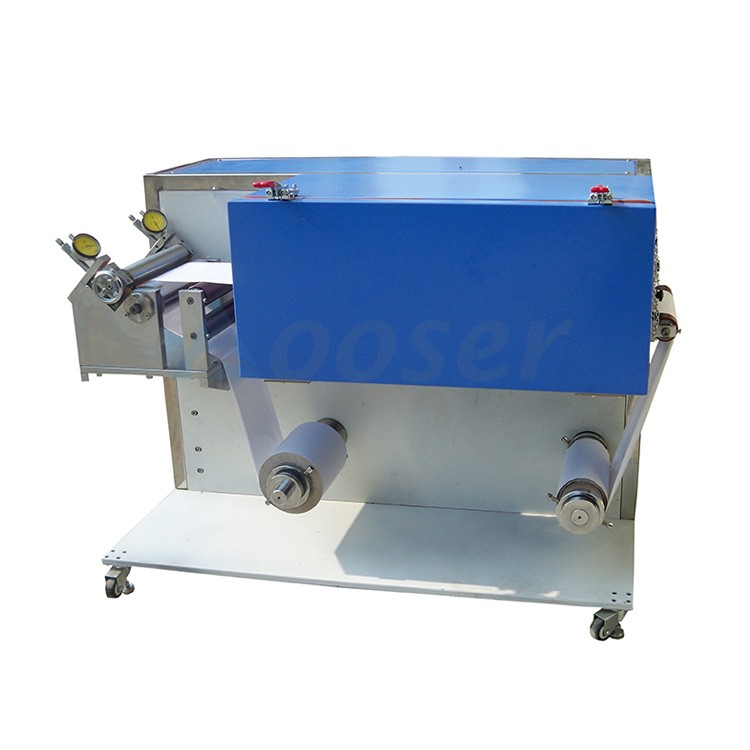

continuous battery coating machine

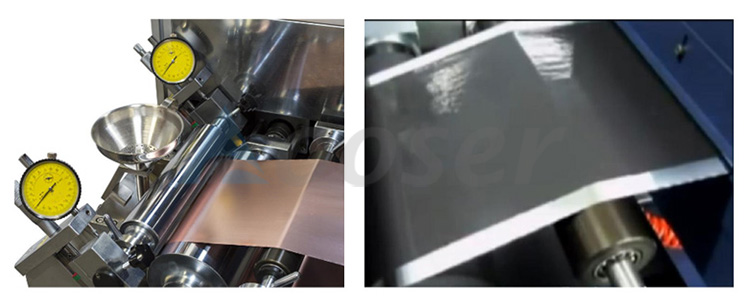

Battery Electrode Coater Machine
