Coin Cell Puncher : punching diameter can be customized according to your requirements, for button battery cell, we ofen use 14 15 16 18 19 20 mm model.
Can be used for battery coated electrode, copper foil, aluminum foil and battery separator cutting to round pieces.

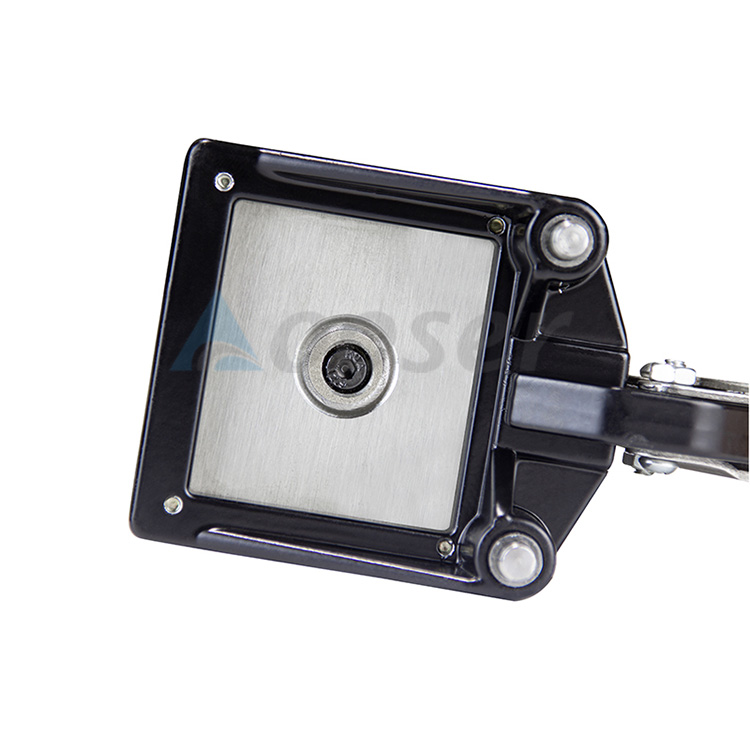

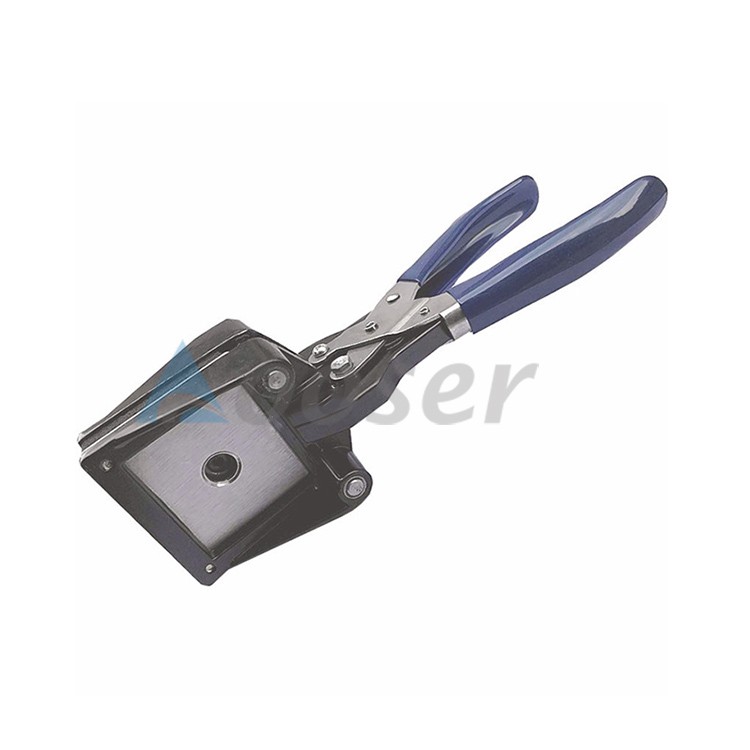

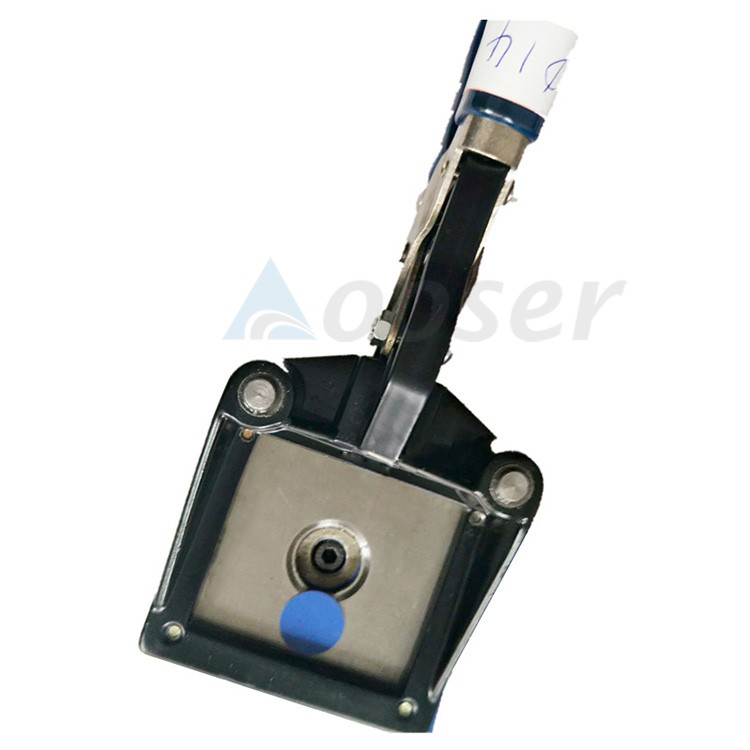

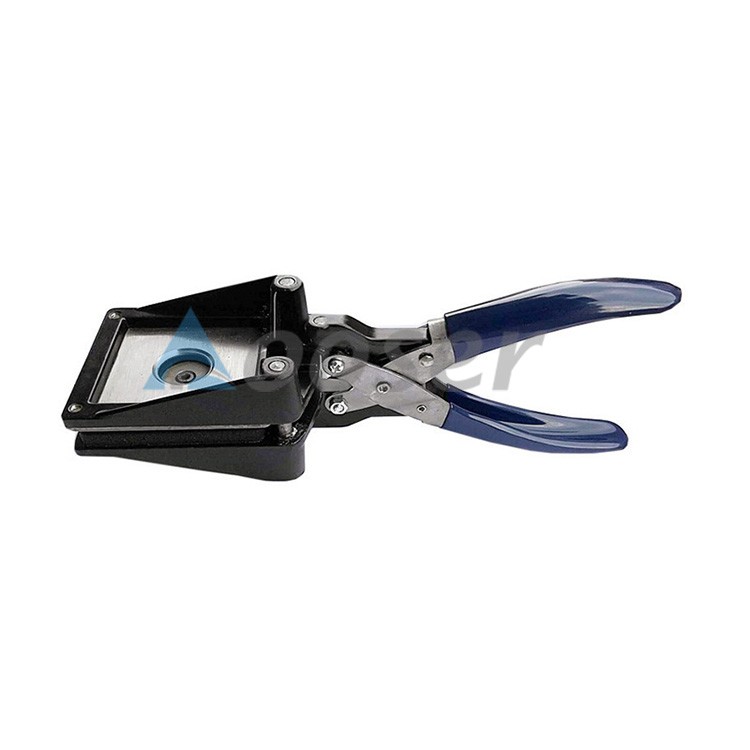

Manual Disc Cutter Punching Tool For coin cell Battery Electrode And separator
Description:
1. Coin Cell Puncher : punching diameter can be customized according to your requirements, for button battery cell, we ofen use 14 15 16 18 19 20 mm model.
2. Can be used for battery coated electrode, copper foil, aluminum foil and battery separator cutting to round pieces.
3. Disc cutter features: one-time cutting, no burrs, smooth edges.
Parameters:
|
Product name |
Portable coin cell puncher tool |
|
Drive type |
Manual |
|
Optional cutting size |
10-50mm is custom |
|
Application |
Battery electorde and separator punching |
|
For CR20XX coin cell research |
Suggestion: 14/15 mm diameter cutter for electrode, 19mm for battery separator cutting |
|
Accuracy |
±0.05mm |
|
Cutting thickness |
0.005-0.25mm |
|
Warranty |
2 years |
