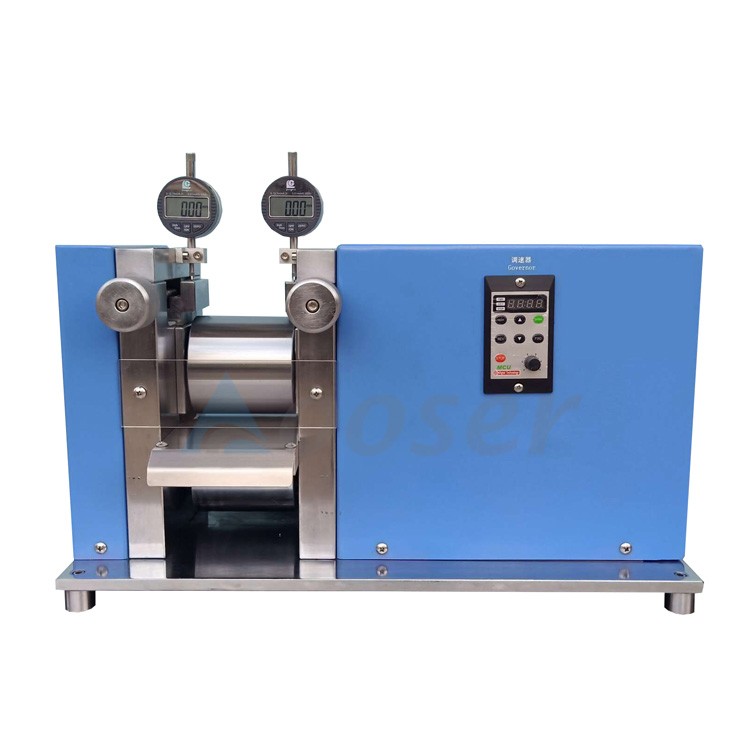

Lab Electric Roller Press Machine for Battery Electrode Calendering

Electric Lab Roller Press Machine for Battery Electrode Sheets Calendering

Item Name

Battery electrode sheet calendering machine

Power

100W

Voltage

220V 50Hz, 110V optional

Roller material

HRC62

Roller diameter

100mm

Ra

>0.8um

Press gap

0-2mm adjusted

Rolling width

0-100mm adjusted

Rolling speed

0~40mm/s adjusted

Size

L385mm*W245mm*H355mm

Weight

60KG

Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.

1. Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting;

2. Coated Rust-proof oil if machine were to be unused for a long period of time;

3. The minimum thickness of the rolled sheet should depend on the physical property of the materials.
