5V100mA Four Range Coin Cell Tester for Lab

1. CV output range:10mV~5V
2. Min discharge voltage: -5V
3. Output range/channel: Range1: 0.2μA-0.1mA; Range2: 0.1mA-1mA; Range3: 1mA-10mA；Range4: 10mA-100mA
4. CV cut-off current: Range1: 0.1μA; Range2: 1μA; Range3: 10μA; Range4:0.1mA
5. Accuracy: ± 0.01% FS
6. Stability: ± 0.02% FS

5V100mA coin cell Tester for Lab Button Battery Checking

Description:

There are many laboratory equipment, but you can't do without you.

CT-4000 four-range mA device meets 0.01% FS accuracy, DCIR test, dQ/dV differential capacity curve, μA level current unit, three-electrode test. Mainly for research institutions and universities.

0.01% FS accuracy, μA level button battery tester. Self-transcendence, breaking through four ranges.

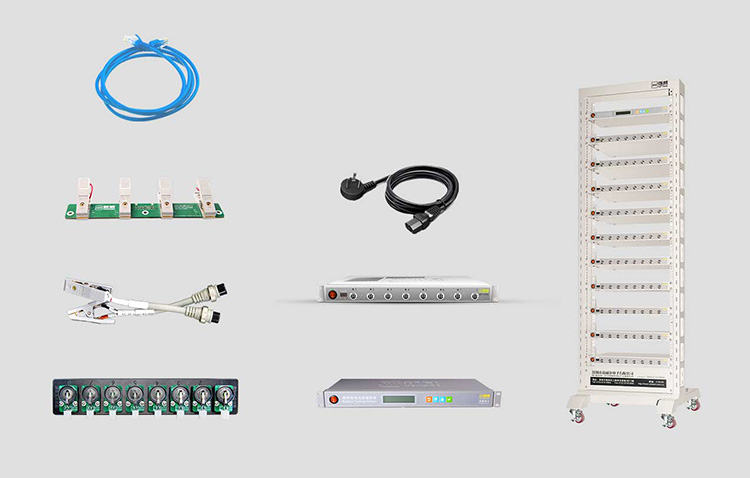

The battery charge and discharge test system and the environmental test box, through the BTS host computer control system, realize integrated operation and work together to maximize the battery characteristics and functions. More details please contact Aooser sales person.

Parameters:

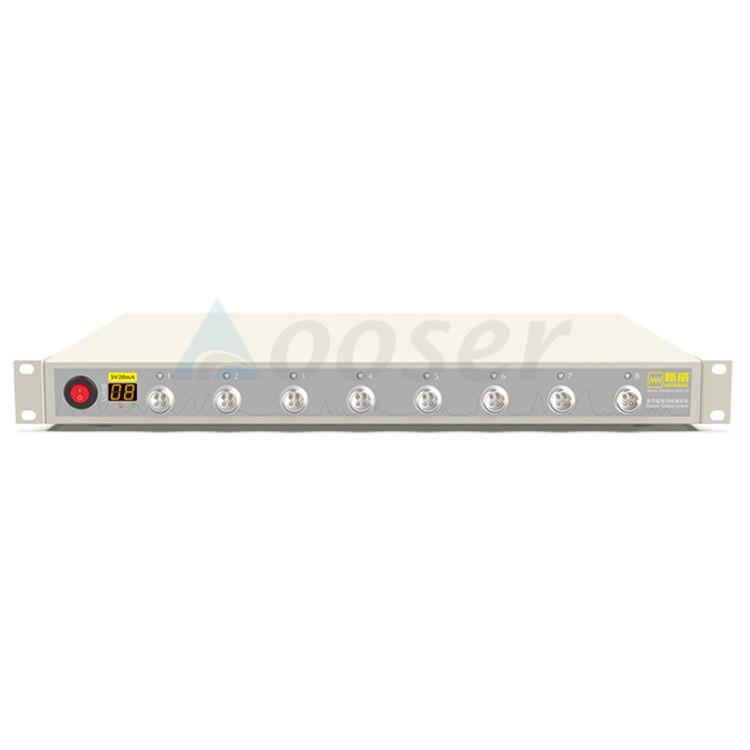

Aooser BTS4000-5V100mA Button Battery Testing Equipment
Model：	BTS4000-5V100mA	Battery Testing System		SN:	CT-4008Q-5V100mA-124
Items		Values
Input AC		AC 220V/110V ±10% / 50Hz
Input power		40 W
Resolution		AD:24bit;DA:16bit
Input impedance		≥1G Ω
Voltage	CV output range	10mV~5V
	Min discharge voltage	-5V
	Accuracy	± 0.01% FS
	Stability	± 0.02% FS
Current	Output range/channel	Range1:0.2μA-0.1mA; Range2:0.1mA-1mA; Range3:1mA-10mA；Range4: 10mA-100mA
	Accuracy	± 0.01% FS
	CV cut-off current	Range1:0.1μA; Range2: 1μA; Range3:10μA; Range4:0.1mA
	Stability	± 0.02% FS
Power	Output power/channel	0.5	W
	Stability	± 0.1% of FS
Time	Current response time	<1.5ms (10%FS~90%FS)
	Working step time	≤(365*24)h/step Time format-00:00:00.000(h,m,s,ms)
Data record	Data record conditions	Min data record interval:10ms
		Min voltage change:5mV
		Min current change:Range1:0.1μA; Range2: 1μA; Range3:10μA; Range4:0.1mA
	Frequency	100Hz (when you set 100Hz, one tester require one control unit)
Charge	Charge modes	CC,CV,CCCV,CP
	Cut-off condition	Voltage,Current,Time,Capacity,Energy,-△V
Discharge	Discharge modes	CC,CV,CCCV,CP,CR
	Cut-off condition	Voltage,Current,Time,Capacity, Energy
Pulse	Charge	CC, CP
	Discharge	CC, CP
	Min pulse width	500ms
	Pulse counts	Up to 32
	Chg and Dschg switch	Supported
	Cut-off condition	Voltage,RelativeTime
DCIR	Supports custom points for DCIR calculation
Cycle	Max cycles	1-65535 times
	Max steps	254
	Cycle nest	With nested loop function, supports up to 3 levels of nesting
Protection	Safety protection	Power-failure data protection
		Offline operation mode
		User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.
	IP protection class	IP20
Noice	<45dB
Channel Features	The constant current source and constant voltage source adopt double closed-loop structure
Detection sampling	Four-wire connection
Database	Centrally manage test data with MySQL database
Mode	Based on TCP/IP protocol
System	Windows 7/Windows 10
Disk	500GB
Export	EXCEL2003，2010、TXT
Leakage	0.005μA

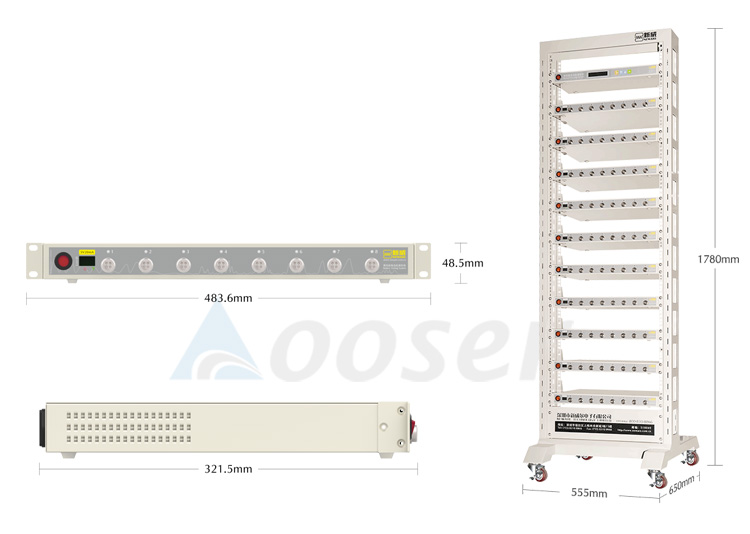

Dimension	1U(19"),W483mmD310mmH48mm
