Model: AS-HDP-15T
Origin: China
Weight:30kg

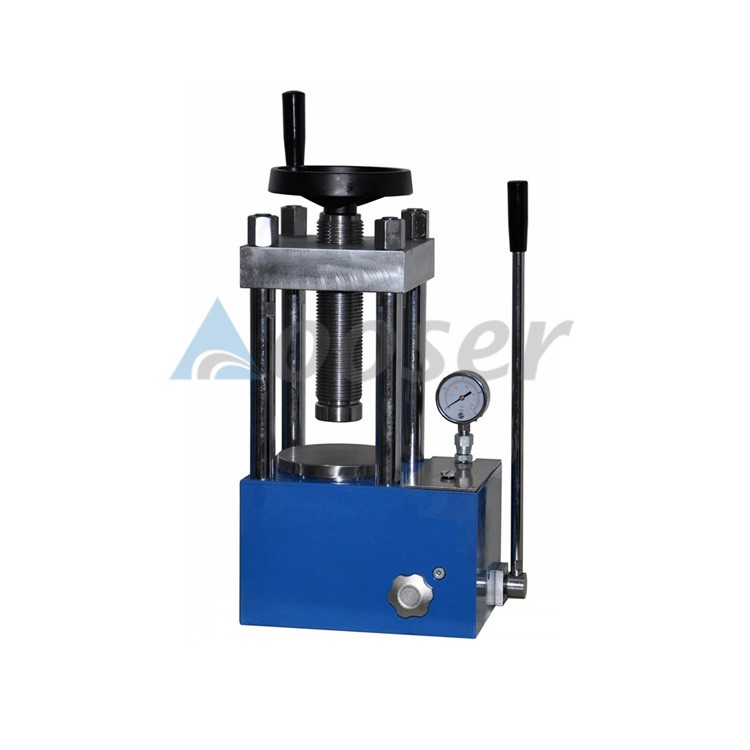

AS-HDP-15T manual hydraulic pressing machine is a vertical friendly-used tool used for potassium bromide (KBr), sodium chloride (NaCl) and other materials powder pressed into various specifications of samples for spectral analysis. The machine possess the advantages of precise structure, light weight, fast pressure boost and high safety performance.
Hydraulic Tablet Pressing Machine for CR20XX coin cell Materials Pressing
Technical specifications:
AS-HDP-15T manual hydraulic pressing machine is a vertical friendly-used tool used for potassium bromide (KBr), sodium chloride (NaCl) and other materials powder pressed into various specifications of samples for spectral analysis. The machine possess the advantages of precise structure, light weight, fast pressure boost and high safety performance.

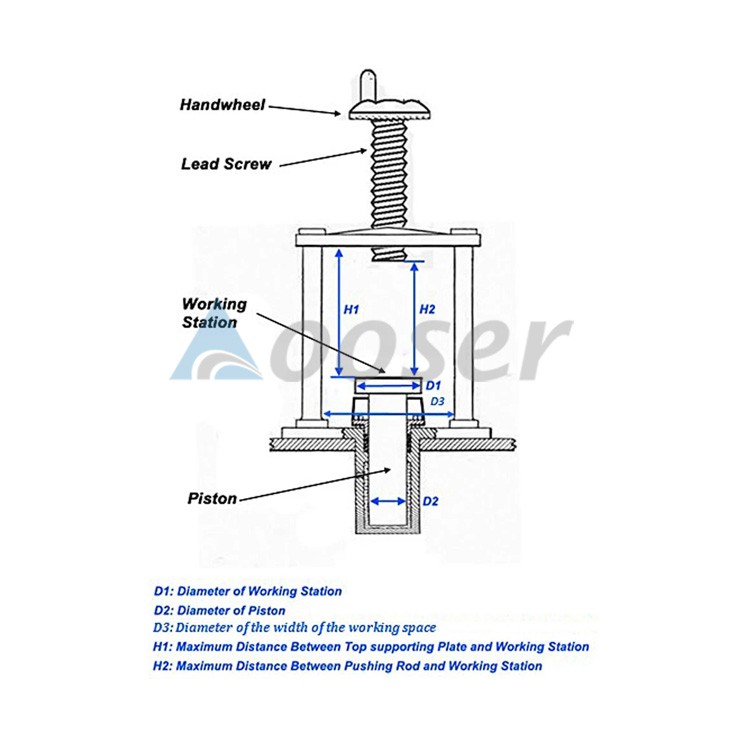

Parameter:
|
Machine model |
Hydraulic Pressing MachineAS-HPM-15T |
|
Pressure Range |
0-15T |
|
Working piston diameter |
70mm |
|
Maximum working stroke |
10mm |
|
maximum working space |
110mm |
|
Dimension(L*W*H) |
260*220*380mm |
|
Packing Weight |
40kg |
|
Warranty |
One Year limited warranty with lifetime support |
Comparison table of pressure value and actual pressure gauge:
|
Gauge (Mpa) |
10 |
15 |
20 |
25 |
30 |
38 |
|
Pressure (Ton) |
4 |
6 |
8 |
10 |
12 |
15 |
