This is a precision disc cutter and designed for cutting round disc from thin metal sheet/foil (< 0.5 mm)or separator film (<50um) to prepare electrode/separator disc for split flat cell or coin cell for battery research.

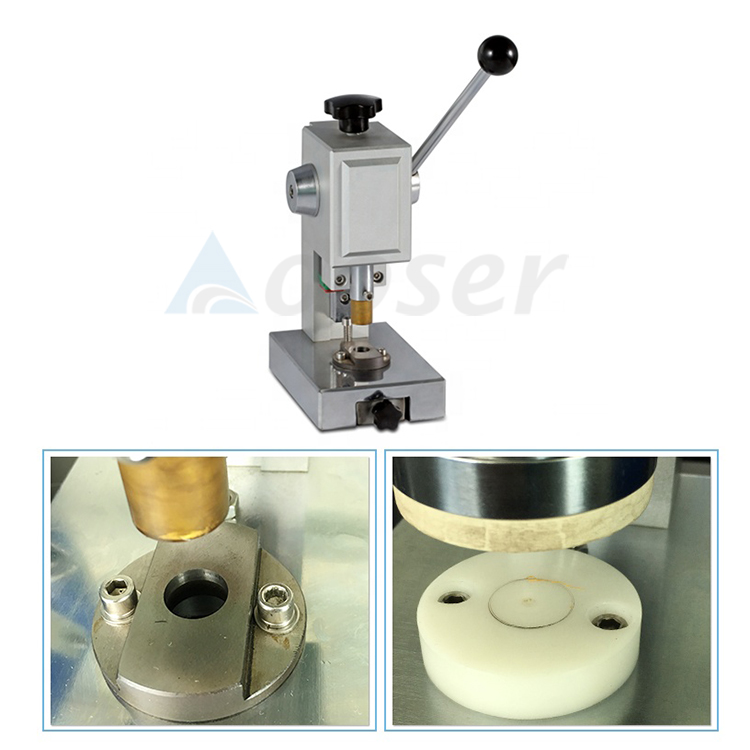

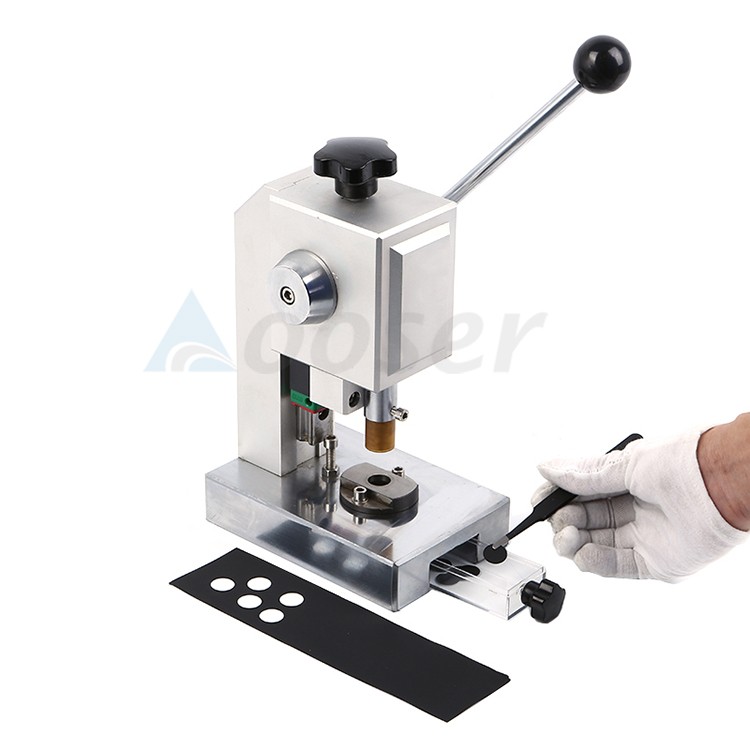

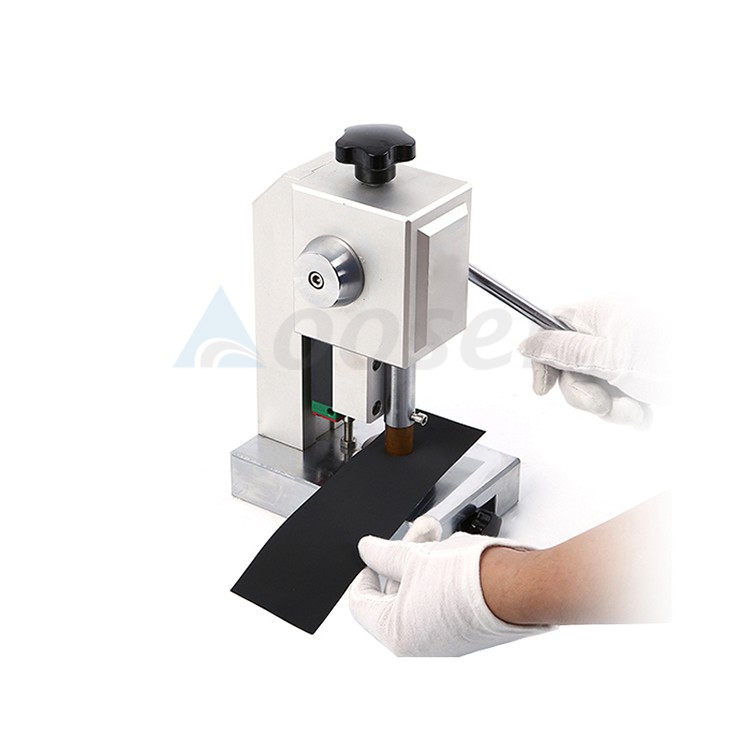

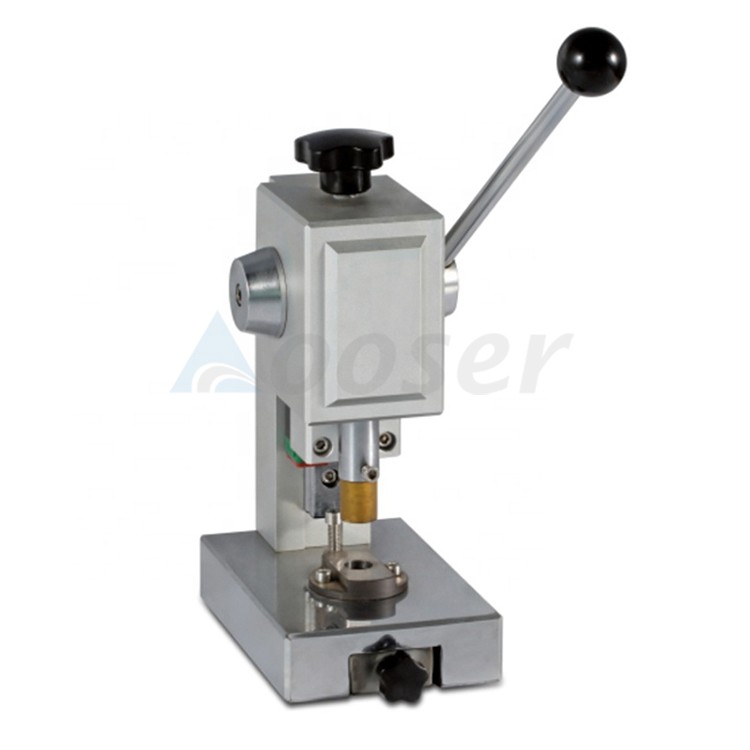

Manual Precision Disc Cutter Punching Machine for Lithium Battery
Description:
This is a precision disc cutter and designed for cutting round disc from thin metal sheet/foil (< 0.5 mm)or separator film (<50um) to prepare electrode/separator disc for split flat cell or coin cell for battery research. It can be easily put in glovebox through a transition chamber of diameter bigger than 230mm due to its compact size.
Parameters:
|
MachineModel |
Disc cutter for coin cell electrode punching(AOS-CP60) |
|
Operating |
Manual |
|
Punching size |
Standard configuration : φ14mm punching die, φ8-24mm can be chosen |
|
Application Notes |
For make CR2016, CR2025 or/and CR2032 coin cell batteries, we will need at least three cutting dies: A 15mm (for negative side case, which is 16.5mm in diameter) B 19mm (for positive side case, which is 20mm in diameter) C 20 mm (for separator to fully separate the electrodes) For CR2450 coin cell: 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die for either electrode or separator disc. |
|
Mold material |
high quality die block steel, heat treatment to HRC60 hardness |
|
Mold precision |
±0.01mm |
|
Punching stroke |
25mm |
|
Punching thickness |
0.005-0.5mm electrode and separator |
|
Body materials |
Cr Plated Steel |
|
Advantages |
Simple operation Light weight Can both cut electrode and separator |
|
Dimension |
110*150*235mm |
|
Weight |
About 6kg |
|
Warranty |
One Year limited warranty with lifetime support |
