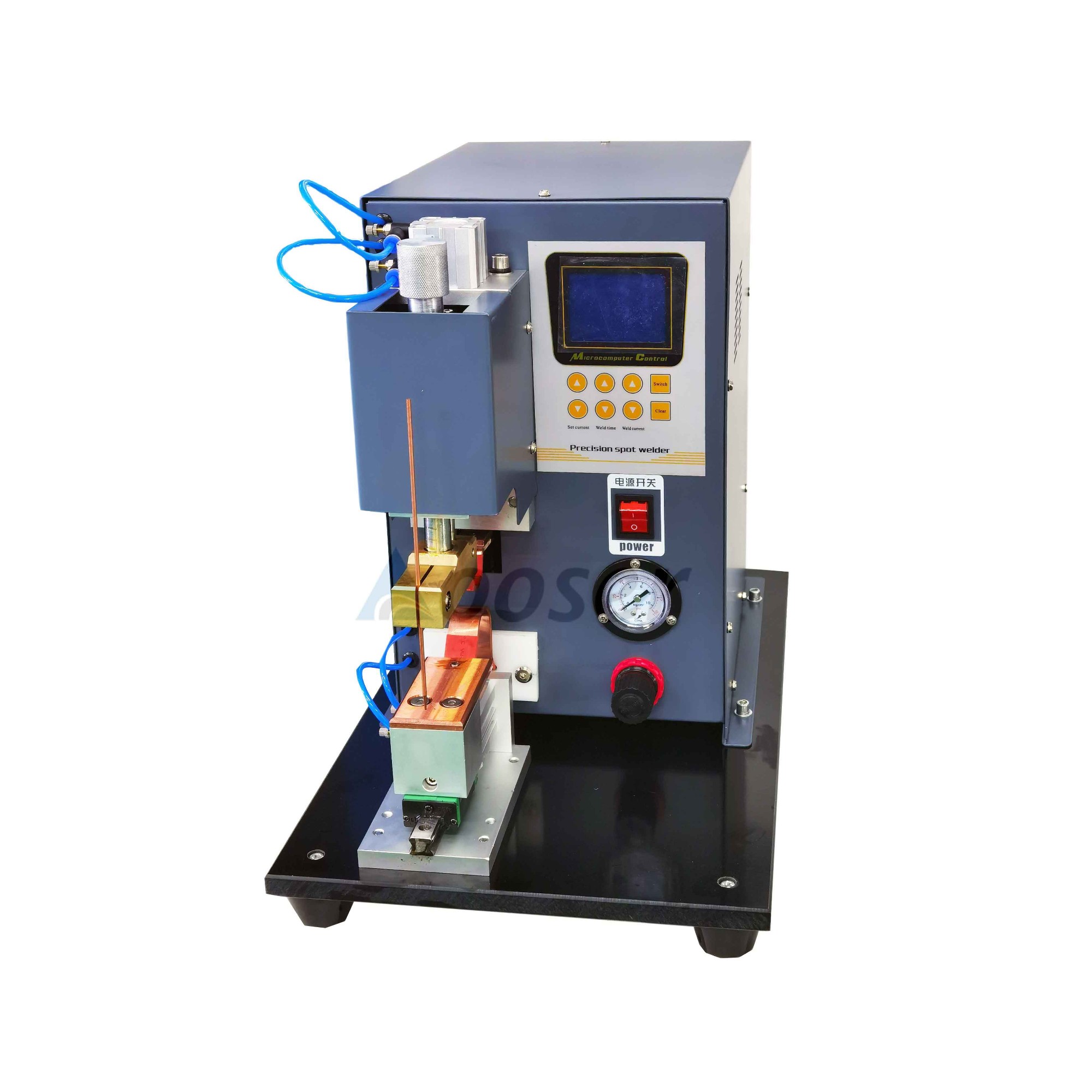

Microcomputer high-frequency inverter spot welding machine

Product Name: Microcomputer high-frequency inverter spot welding machine

Brand Name:AS-DH-1000

Product Origin:China

Product description: The microcomputer spot welding machine adopts high-frequency inverter technology, equipped with an LCD display and 99-level current adjustment, precisely welding 0.03-0.15mm electrode sheets, eliminating the problem of low-voltage leakage in lithium batteries. It is compatible with both pneumatic and foot pedal dual modes for automated production lines, ensuring uniform weld points without black spots and increasing the yield rate by 30%.

The microcomputer high-frequency inverter spot welding machine is a high-performance spot welding machine designed according to the principle of the most advanced spot welding machine. Using microcomputer single-chip microcomputer control and AC inverter technology, the performance has reached the top level of resistance welding.

It mainly has the following characteristics:

1. Beautiful appearance and lightweight.

2 .The solder joints are beautiful, the sparks are small, there is no blackening, and the welding current is stable, and the size of the solder joints is uniform.

3. It completely overcomes the phenomenon of low pressure and water outlet after spot welding of lithium batteries, and is an ideal equipment for the production and assembly of batteries.

4. Because the machine is controlled by microcomputer single-chip microcomputer, the welding operation is programmed.

5. The parameters are micro-computerized, using LCD liquid crystal display, keyboard adjustment, accurate, intuitive and convenient.

6.SWD type (divided into foot pedal and pneumatic type), foot pedal spot welding machine has the characteristics of accurate alignment, suitable for the welding of small cap cells, and high yield. The pneumatic spot welding machine has the characteristics of labor-saving operation and easy integration with motorized equipment.

7. The pressure of the two welding pins is adjusted independently, and the adjustment is convenient to ensure that the welding pressure is stable and reliable.

8.welding switch is the only one in China that adopts photoelectric switch control, which eliminates the pain of replacing the switch of similar machines.

Main technical parameters

Power supply	AC 220V±10% 60Hz±5%Hz
Output maximum power	10KVA
Input air pressure	0.1-0.8MPa
Welding curren	00-99
Weight	45KG
Dimensions:	800L×580W×1200H（unit：mm）
Scope of application	It is suitable for a variety of welding pieces of 0.03mm~0.15mm
