Battery Grooving Machine

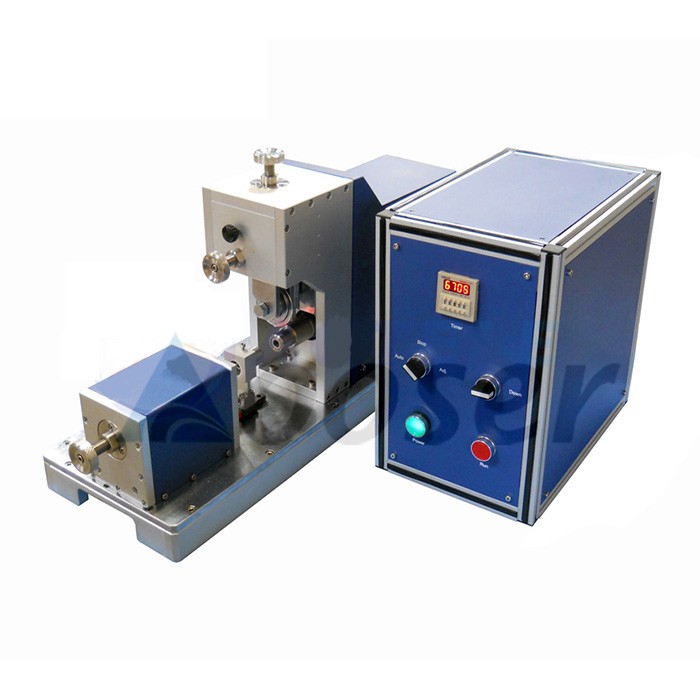

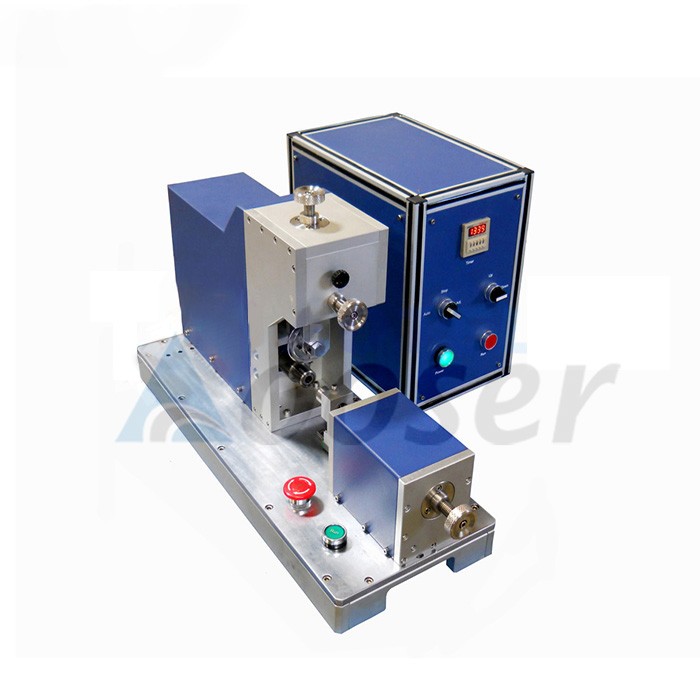

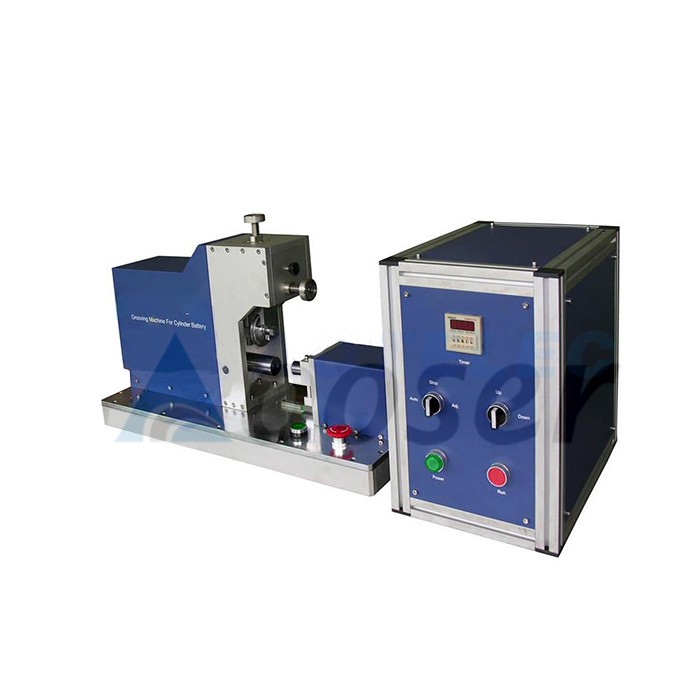

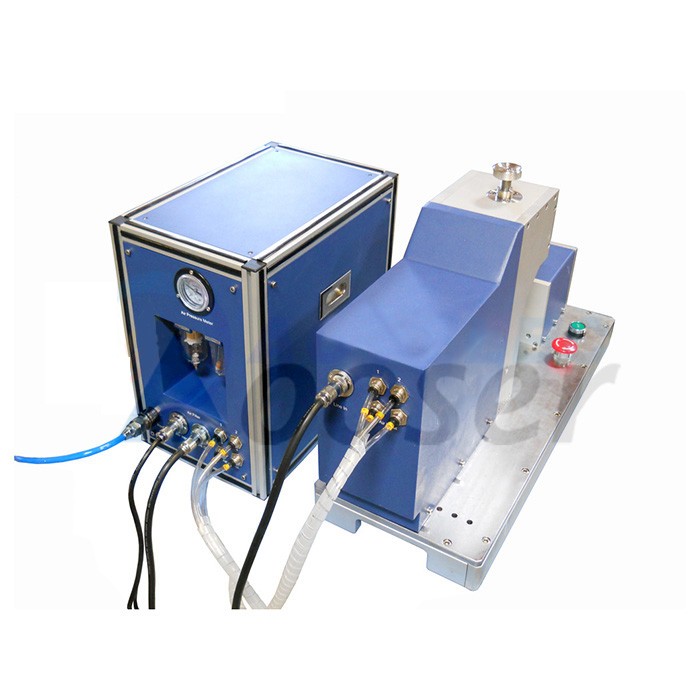

AS-MSK-500 Semi-Automatic Grooving Machine

The AS-MSK-500 is a precision-engineered semi-automatic grooving machine designed for high-efficiency and accurate grooving of cylindrical battery shells, including CR123, 18650, 26650, 32650, and AA models. Engineered for durability and repeatability, this machine delivers ±0.1 mm precision across groove dimensions of 1.2–2.0 mm depth and 1.1–1.5 mm width, ensuring consistent quality for battery manufacturing and industrial applications.

Key Features:

• High Productivity: Achieve up to 400 grooves per hour for small-to-medium batch production.
• Long-Lasting Performance: Grooving blades rated for >1 million cycles reduce downtime and maintenance costs.
• Wide Compatibility: Supports multiple cylindrical cell formats with dedicated grooving dies (one die per machine recommended for optimal performance).
• Robust Design: Compact footprint (600×230×350 mm) and 68 kg weight ensure stability in lab or production environments.


Technical Specifications:

• Power Supply: Single-phase 110V/220V AC, 50/60Hz (140W max)
• Air Pressure Requirement: >0.5 MPa
• Operational Safety: Semi-automatic control minimizes manual intervention.

  Technical Parameter:

  Product name	Grooving machine AS-MSK-500
  Voltage	Single Phase110V/220V AC, 50/60Hz
  Max. Power	140W
  Air Pressure	>0.5 MPa is required
  Grooving Dimensions	Depth: 1.2 - 2.0 mm Width: 1.1 - 1.5 mm
  Grooving Accuracy	+/- 0.1 mm
  Grooving Blade Durability	>1 million times
  Productivity	400 grooving per hour
  Compatibility	CR123 / 18650 / 26650 / 32650 / AA
  Product Size	L600mm x W230mmx H350mm
  Weight	68KG
  Notes	Each machine should be used with one particular type of grooving die only. A separate set of machine is suggested to use for another set of grooving die.

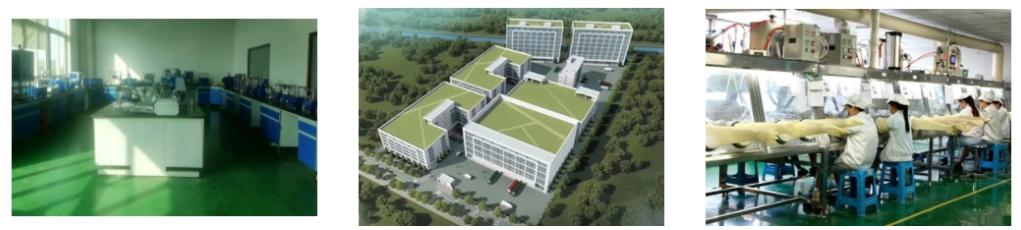

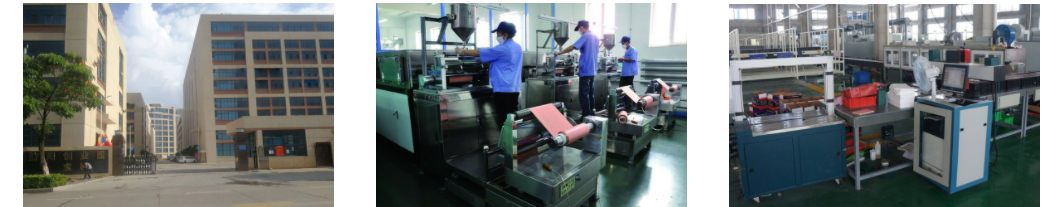

Company Profile

Xiamen AS battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AS Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
