Model: AS-WSC-18
Weight: About130KG
Origin: China
Suitable: 18650 26650 32650 optional
Warranty: 2 years
Description: It is a necessary lithium battery equipment of Battery Pack Manufacturer for voltage and resistance testing and sorting.

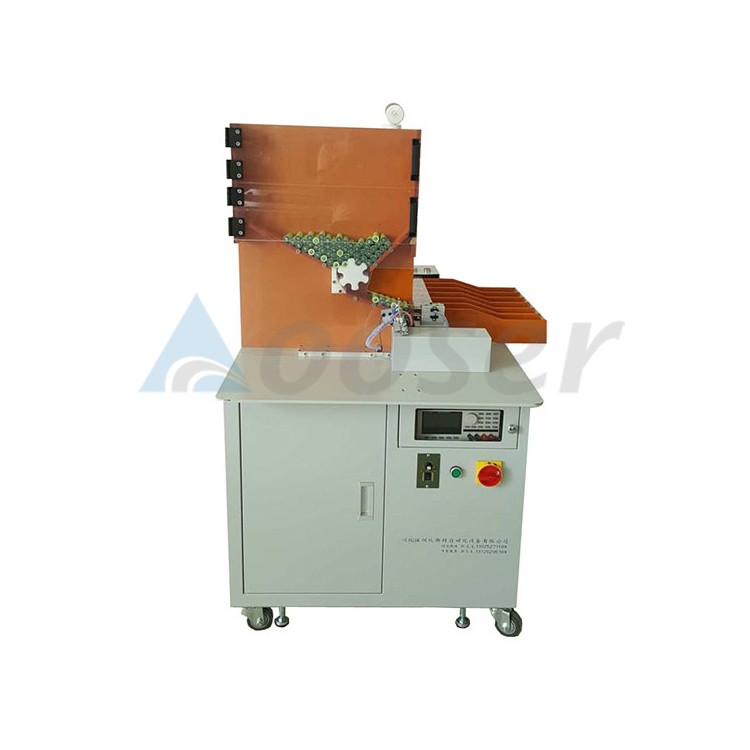

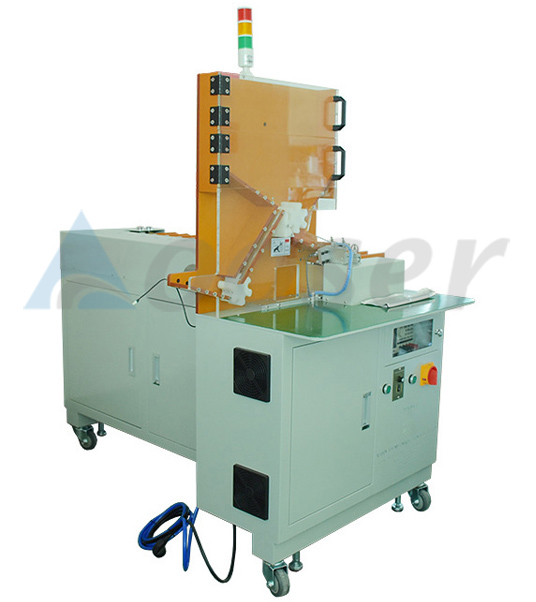

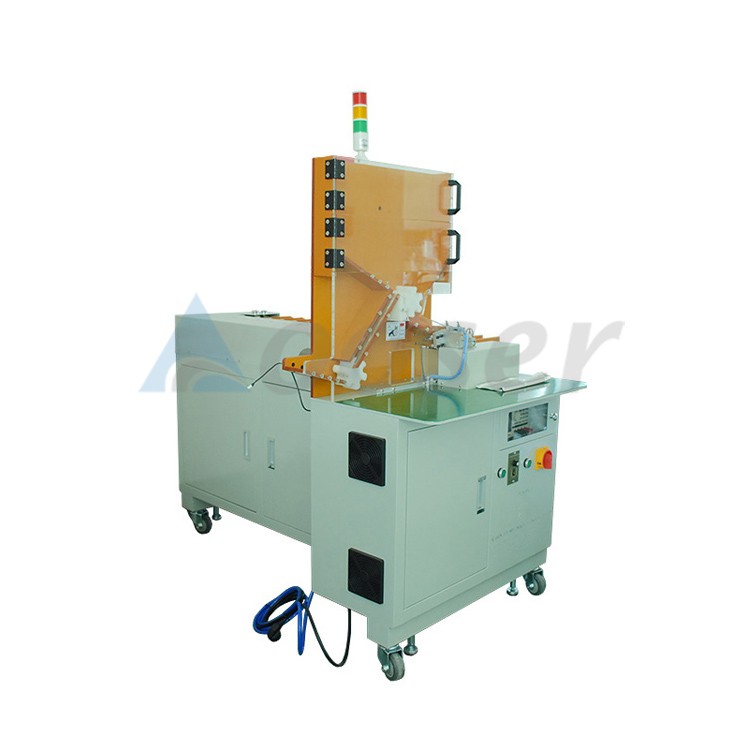

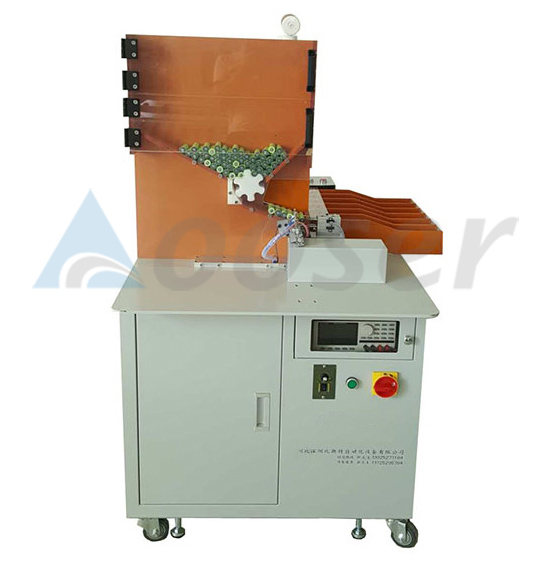

Automatic 5 Channels Cylindrical Cell Sorting Machine
Description:
It is a necessary equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting. 5 channels automatic cell sorter is designed to sort cylindrical 18650 cells.
Sort by cell's voltage and impedance up to up to 5 groups
Automatic sorting control
Fast sorting speed (5000 batteries/hr)
Easy to refill cells during the process
wheels design, easy to move the machine to any operating place
Specifications:
|
18650 battery soring machine |
|
|
Item Name |
5 channels Automatic 18650 sorting machine |
|
Power Supply |
220V/50HZ; 110V can be customized |
|
Power |
1.6KW |
|
Air Pressure |
0.4-0.8Mpa |
|
Application |
Automatic soring 18650 cells by voltage and internal resistance, or separately sorting voltage or sorting internal resistance |
|
Voltage Range |
0-6V |
|
Voltage Accuracy |
0.00005V |
|
Resistance Range |
0-999.9mΩ |
|
Resistance Accuracy |
0.01mΩ |
|
Scanning Function |
Optional (standard model don’t have this function) |
|
Automatic on-line interface |
Can be customized(connected to the automatic surface cushion machine, achieve automatic connection of the cells, save labor costs) |
|
Sorting Speed |
About 5000pcs cells/hour (standard); 3000pcs cells/hour (with scanning function) |
|
Display |
7.5 inch touch screen control |
|
Dimension |
L 1100mm*W 930mm*H 1390mm |
|
Weight |
About130KG |
|
Warranty |
2 years |
