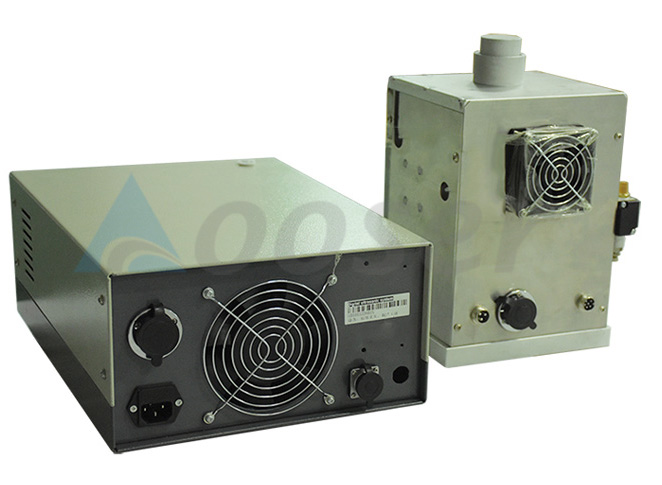

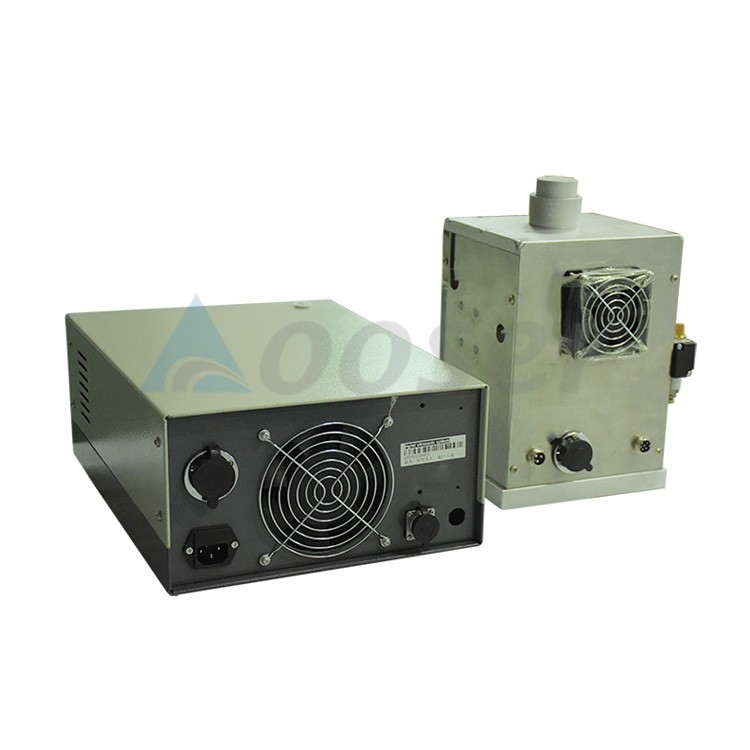

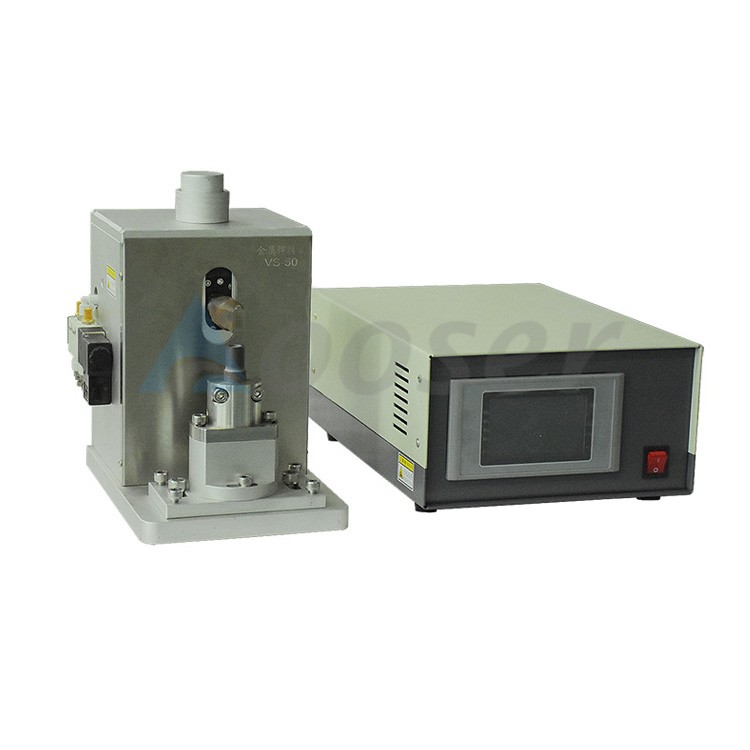

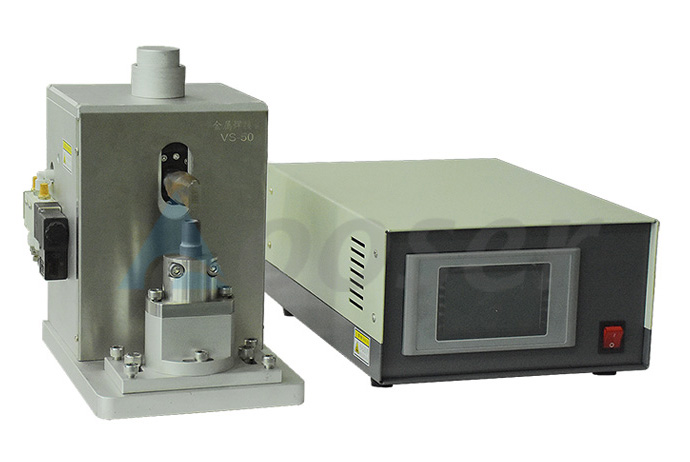

Ultrasonic Spot Metal Welder Machine for Cylindrical Battery

Model: AS-MAC-50A

Power:800W

Origin: China

Warranty: One year

Description: Ultrasonic Spot Welding Machine with Automatic frequency tracking function, It's simple operation, use for cylinder cell Aluminum tab and Cap welding.

Ultrasonic Spot Metal Welder Machine for Cylindrical Battery

Advantages with laser welding:

1. Laser welding need to weld after electrolyte filling, need to wipe the tab. AOT-VS-50A welding cap before electrolyte filled, more simple.

2. Laser welding is about 2-3% NG because of burning through tab, this AOT-VS-50A spot welder close to 0%.

3. Ultrasonic welding can weld 2-3layers Tab to Cap

4. High efficiency, Low cost, Small volume, simple operation

Specifications:

Model	AS-MAC-50A
Source voltage	AC220V, 50HZ, can be customized
Power	800W
Warranty	One Year limited warranty with lifetime support
Type	Ultrasonic spot welding machine
Frequency	50KHZ
Welding time	0.05-9.99s
Air supply	0.2-0.8MPa

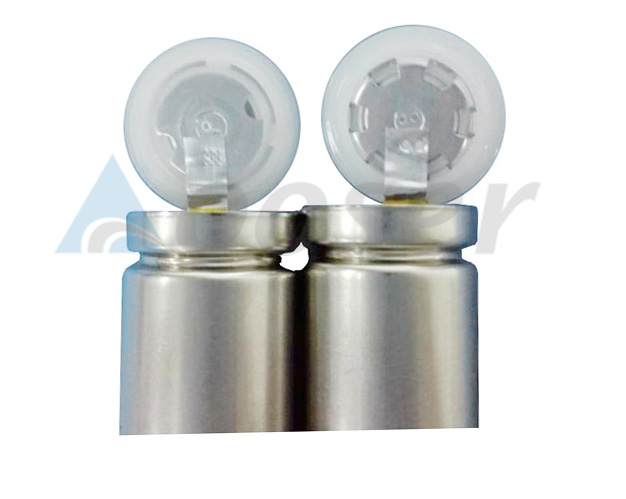

Welding effect	Single layer or multi-layer Aluminum tab andAl Cap welding , belt melt, welding firmly
Welding ability	1 Materials : Al Tab and cylinder cell cap (18650, 26650 and so on) 2 Al tab thickness : 0.08-0.15mm 3 Welding mode : according to your requirements 4 Welding area : can be customized
Dimension (LWH)	Power box : 400170300mm Welding machine : 300200270mm
