  • Automatic Battery Pack Assembly Production Battery Insulation Paper Sticking Machine
  • Automatic Battery Pack Assembly Production Battery Insulation Paper Sticking Machine
Automatic Battery Pack Assembly Production Battery Insulation Paper Sticking MachineAutomatic Battery Pack Assembly Production Battery Insulation Paper Sticking Machine

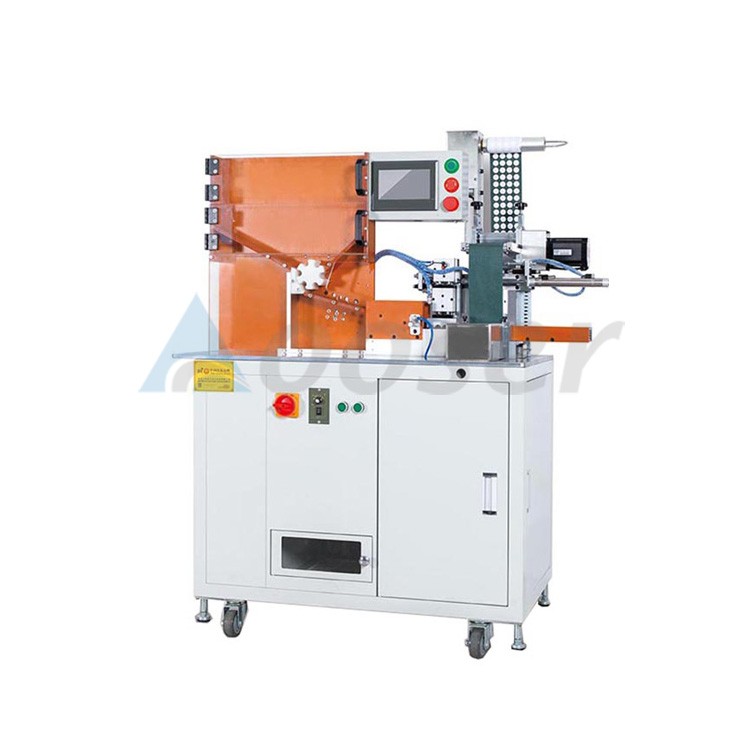

Automatic Battery Pack Assembly Production Battery Insulation Paper Sticking Machine

Model: AS-APS-18650

Efficiency: About 4500pcs/hour

Origin: China

Warranty: 2 Years

Description: It is an automatic insulating paper sticking machine for 18650 battery baley papar pasting, more effectioncy, it can replace 10-15 staffs works.

EMAIL

Insulation Pasting Equipment Barley Paper Sticking Machine for 18650 Battery


Features:

1.Using hopper loading box, it is available for 450-500PCS battery cells (for continue working about 10 minutes) , also can be gradually added cells manually.

2.The insulating highland barley paper uses the roll material, reduces the waste, saves the cost.

3.The double manipulator takes and puts the battery, guarantees the battery to transfer freely from the channel normally.

4.Equipment debugging is simple, easy to learn, fixed parameters, with manual operation and one-step operation and automatic operation procedures.

5.Equipment with fault alarm, according to the prompt to clear the fault.


Specification:

Insulation Paper Sticking Machine for 18650

Power

AC220V±10% 1.6KW 50HZ±10%

Range of application

Battery cell positiveand negative insulating barley paper

Barley/Insulation paper thickness

0.1 mml-0.3 mm

Punching Pad Power

0.4 kw variable frequency motor debugging

Control Devices

7.5-inch touch screen, 2-axis stepper motor design, 42-point PLC programmer

Air pressure

0.4-0.8Mpa

Production Efficiency

About4500pcs/hour

Barcode Reader

Optional

Production Efficiency with barcode reader

About 3000pcs/hour

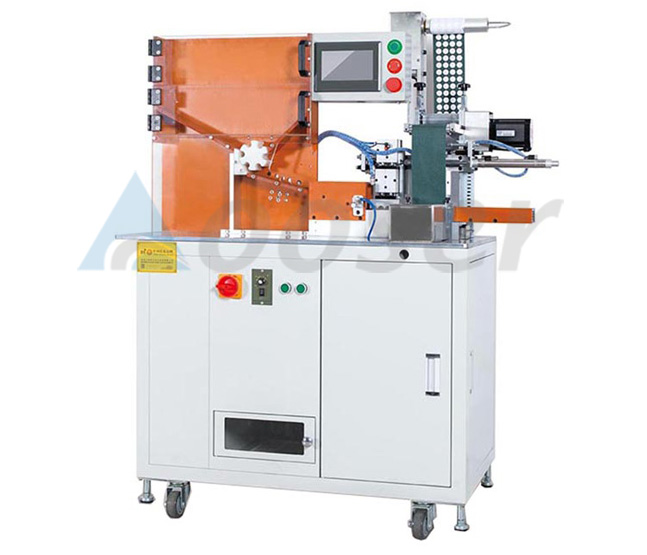

18650 Automatic Insulation Paper Sticking Machine for Battery Pack Assembly

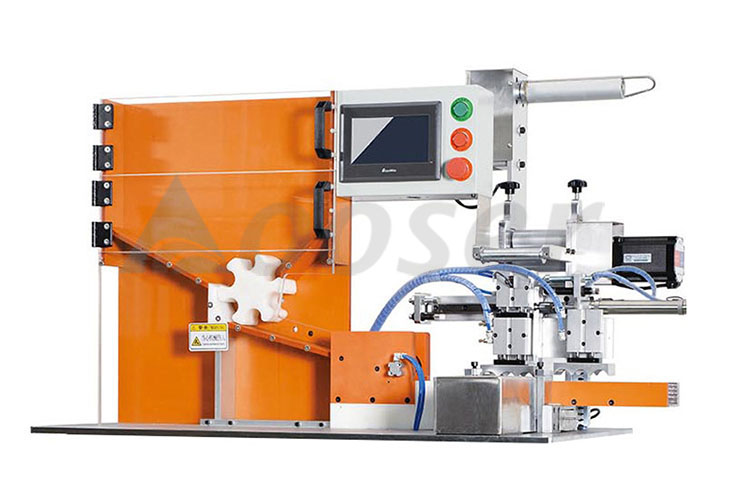

Insulation Paper Sticking Machine

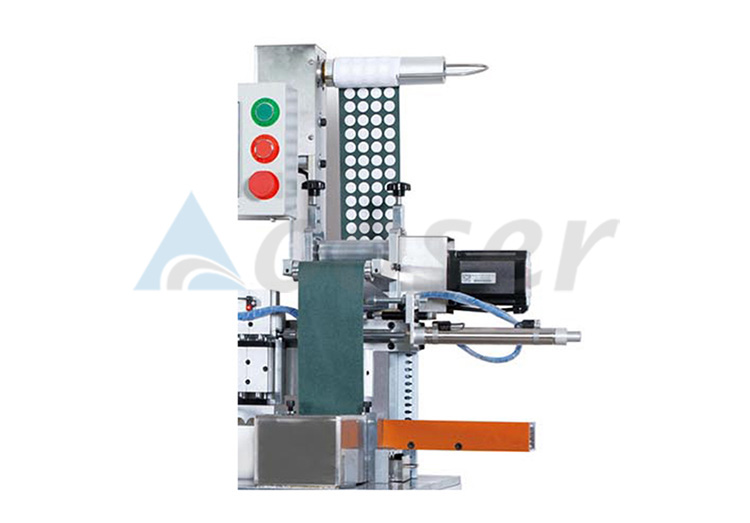

Insulation Paper Sticking Machine
