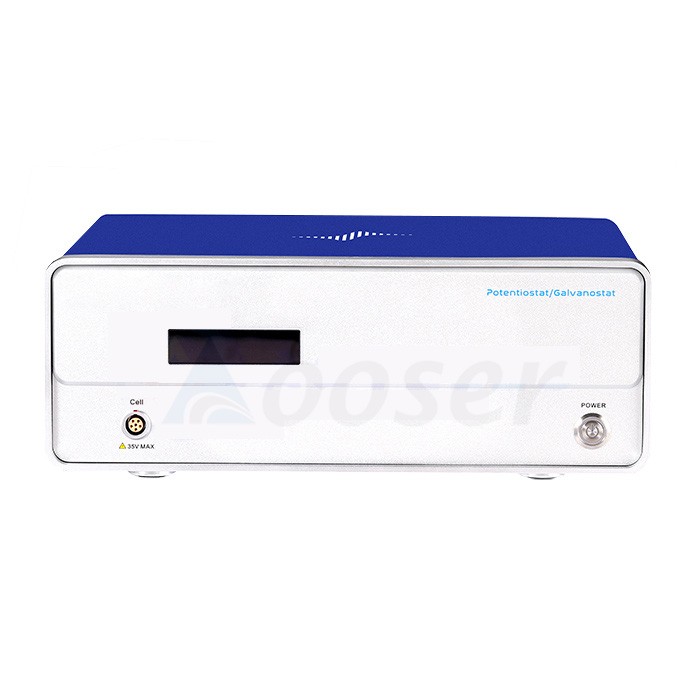

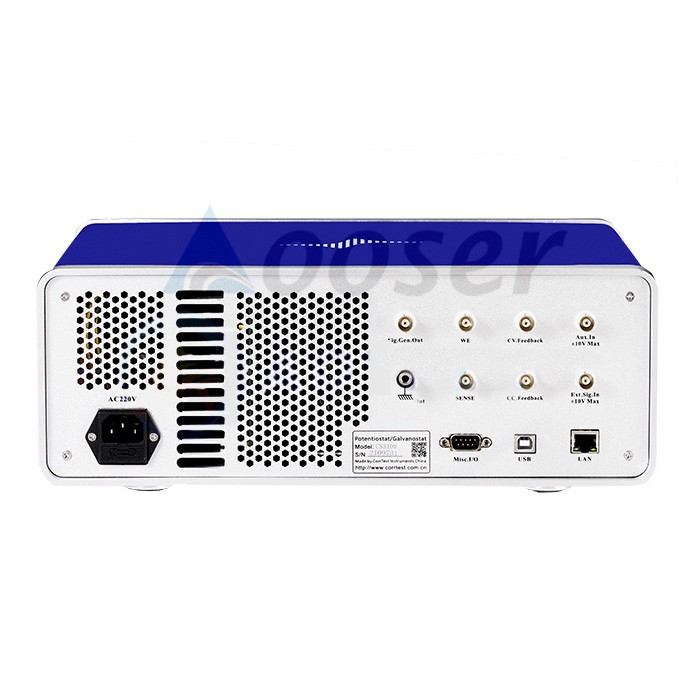

Product name:Lab Single-channel potentiostat /Galvanostat
AS- CS350M
Brand Name. AS
Product Origin:China
Product description: Potentiostat/Galvanostat/FRA/ZRA Maximum Current: ±2A Current range: ±2nA ~2A, 10 ranges Applied Potential: ±10V(can be customized to ±12V) Compliance voltage: ±21V Built-in EIS/FRA, EIS range: 10μHz~1MHz
Product description:
The CS350M Single-Channel Potentiostat/Galvanostat integrates a high-precision DDS arbitrary waveform generator, electrochemical workstation, and frequency response analyzer (FRA) into one compact platform. Leveraging dual 24-bit Delta-Sigma AD converters, it achieves industry-leading measurement stability with ultra-fine resolution of 1mV potential control and 1pA current sensitivity – ideal for nanoscale electrochemical studies.
Core Innovations:
◆ Current Expansion Technology: Boost standard 20A output to 40A/100A via external modules for industrial-scale testing
◆ Cross-Disciplinary Versatility: Optimized for corrosion mechanism analysis, battery material R&D, electrocatalyst screening, and sensor development
◆ Smart Signal Processing: Built-in anti-aliasing filters and temperature-compensated circuitry ensure lab-grade accuracy across -20°C to 60°C environments
Specifications
| Specifications | |
| Support 2-, 3- or 4-electrode system | Potential and current range: Automatic |
| Potential control range: ±10V(can be customized to ±12V) | Current control range: ±2A |
| Potential control accuracy: 0.1%×full range±1mV | Current control accuracy: 0.1%×full range |
| Potential resolution: 10μV (>100Hz),3μV (<10Hz) | Current sensitivity:1pA |
| Rise time: <1μS (<10mA), <10μS (<2A) | Reference electrode input impedance:1012Ω||20pF |
| Current range: 2nA~2A, 10 ranges | Compliance voltage: ±21V |
| Maximum current output: 2A | CV and LSV scan rate: 0.001mV~10,000V/s |
| CA and CC pulse width: 0.0001~65,000s | Current increment during scan: 1mA@1A/ms |
| Potential increment during scan: 0.076mV@1V/ms | SWV frequency: 0.001~100 kHz |
| DPV and NPV pulse width: 0.0001~1000s | AD data acquisition:16bit@1 MHz,20bit@1 kHz |
| DA Resolution:16bit, setup time:1μs | Minimum potential increment in CV: 0.075mV |
| IMP frequency: 10μHz~1MHz | Low-pass filters: covering 8-decade |
| Operating System: Windows 10/11 | Interface: USB 2.0 |
| Weight / Measurements: 6.5kg, 36.5 x 30.5 x16 cm | |

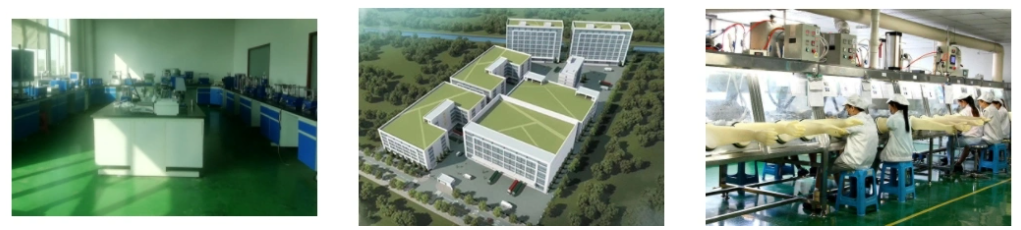

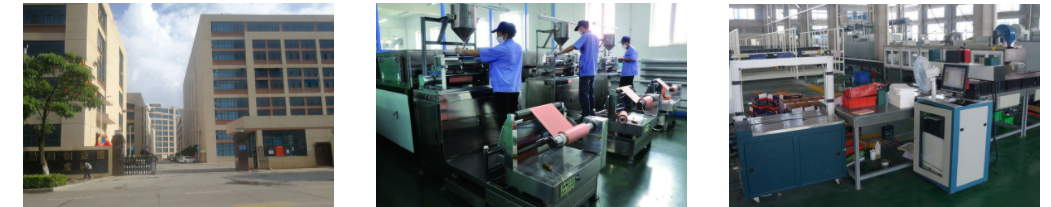

Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
