Nickel foam is a sound absorbing material with high performance. It has a high sound absorption coefficient at high frequencies, and its sound absorption performance can be improved at low frequencies through the design of sound absorption structure.

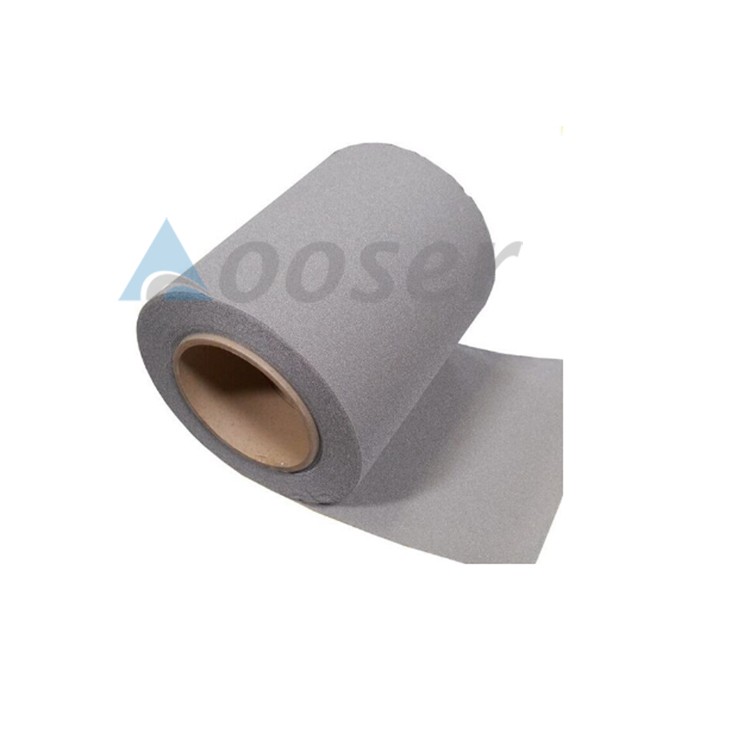

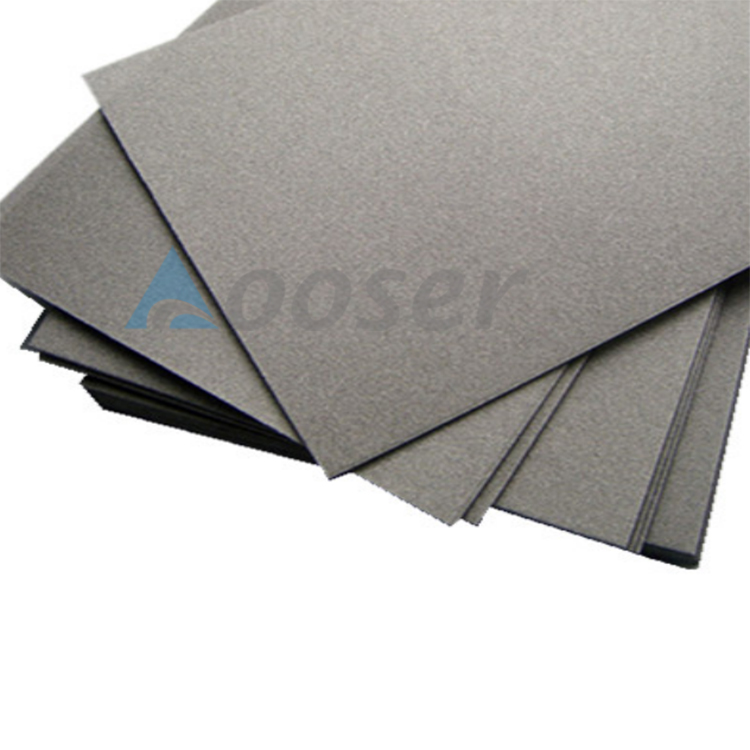

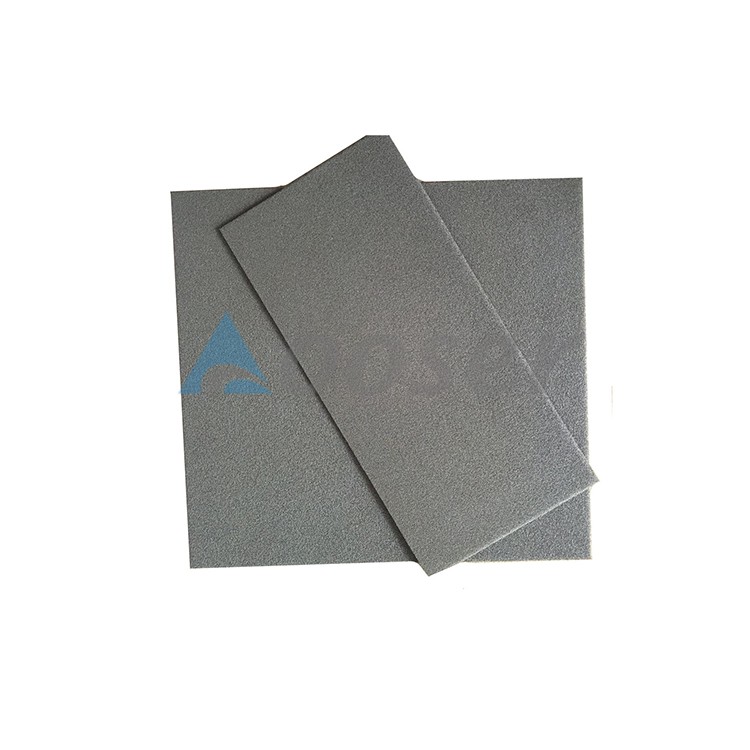

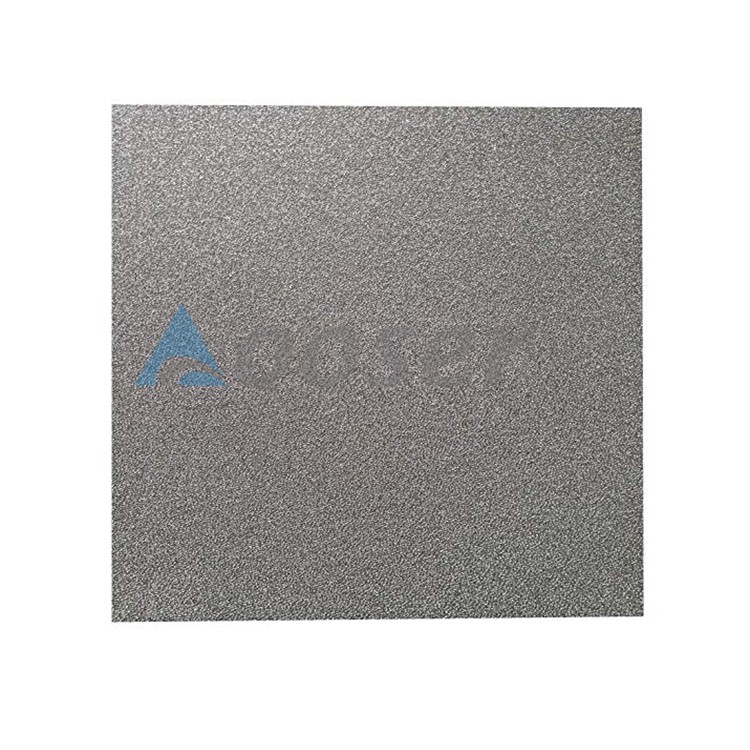

High Purity Nickel Foam Electrode Sheet for Lithium Battery Cathode Materials
Nickel foam is a sound absorbing material with high performance. It has a high sound absorption coefficient at high frequencies, and its sound absorption performance can be improved at low frequencies through the design of sound absorption structure.
Technical Parameter:
|
Molecular Weight |
58.68 |
|
Appearance |
Lustrous silvery metal |
|
Standard sample foam we sell |
200*300mm(width*length),110PPI Thickness,width,length can be customized according to customer's request. |
|
Electrical conductivity |
10^6 S/m |
|
Porosity |
98% |
|
Purity |
≥99.8% |
|
Melting Point |
1455 °C |
|
Boiling Point |
2732 °C |
|
Electrical Resistivity |
69.3 nΩ·m (20 °C) |
|
Specific Heat |
0.44 kJ/kg·K |
|
Vickers Hardness |
638 MPa |
|
Areal density |
350±20g/m2 |
|
Used for super capacitor, nickel hydrogen battery, nickel cadmium battery, fuel cell |
|
Dimension(Thickness* Length*Width):
|
10mm*300mm*200mm |
9mm*300mm*200mm |
8.5mm*300mm*200mm |
|
8mm*300mm*200mm |
7mm*300mm*500mm |
6mm*300mm*200mm |
|
5mm*300mm*200mm |
4mm*300mm*200mm |
3mm*300mm*200mm |
|
2mm*300mm*200mm |
1.7mm*300mm*200mm |
1.6mm*300mm*200mm |
|
1.5mm*300mm*200mm |
1.0mm*300mm*200mm |
0.5mm*300mm*200mm |
|
0.3mm*300mm*200mm |
0.2mm 200mm*300mm |
The size can be customized |
